Chapter 5 Network Deployment
X6004 User’s Guide
138
The following table describes the labels in this screen.
5.7 The VLAN Screen
Use this screen to configure VLAN settings in the X6004. Click Configuration >
Network > VLAN to open the VLAN screen.

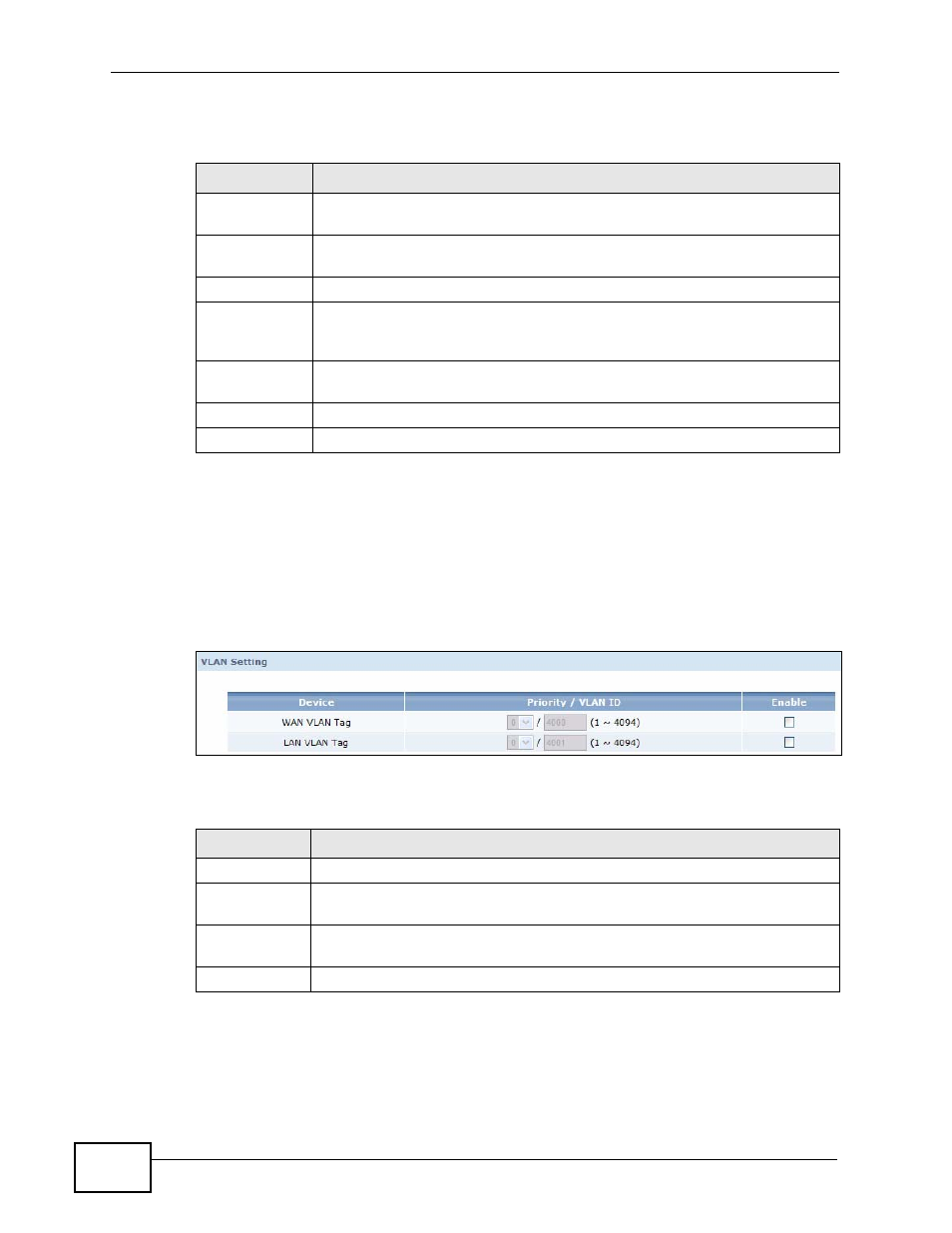

Figure 50 Network > VLAN
The following table describes the labels in this screen.
Table 19 Static Route > Add
LABEL DESCRIPTION
Add a New
Static Route
Destination
Network
This parameter specifies the IP network address of the final destination.
Routing is always based on network number.
Subnet Mask Select the IP subnet mask.
Gateway IP Enter the IP address of the gateway. The gateway is a router or switch on
the same network segment as the device's LAN port. The gateway helps
forward packets to their destinations.
Network
Interface This is a read-only field indicating that this static route is configured for
the LAN.
Apply Click Apply to save your changes back to the X6004.
Cancel Click Cancel to begin configuring this screen afresh.
Table 20 Network > VLAN
LABEL DESCRIPTION
Device This displays a network interface.
Priority /
VLAN ID Select a priority level (0~7) and enter a VLAN ID (1~4094) you want the
traffic is tagged with when it flows through the network interface.
Enable Select this to insert the specified VLAN tag to the outgoing packets
flowing through the network interface.
Apply Click Apply to save your changes back to the X6004.
