Chapter 3 Tutorials
X6004 User’s Guide
68
2

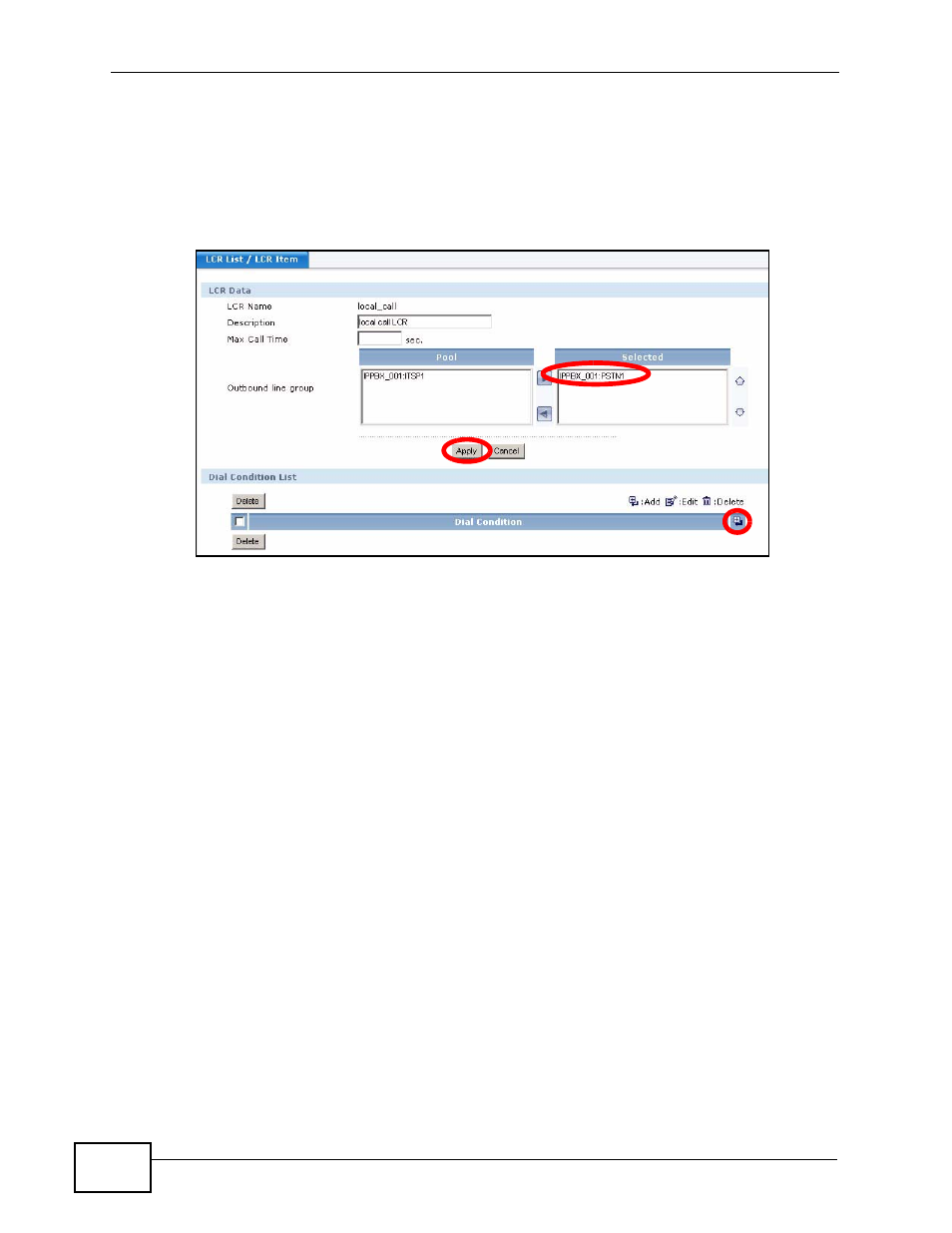

Click the Edit icon in the local_call section to open the following screen. Select
the outbound line group from the pool column that you want to add to this LCR (in
our example this is IPPBX_001:PSTN1 as configured in
), then click the Right icon to move them to the Selected column. Click Apply
to save the outbound line group in the LCR and then click the Add icon to
configure a dial condition. l
3
The Dial Condition screen appears as shown.
• Type 0 followed by a period (.) in the Dial Condition field. This means that
this LCR will be used when callers dial any number that begins with a 0. The
period (.) is a wildcard character, meaning anything can follow the zero.
• Test the dial condition. In our example, we tested the number 05555555 to
see if it matches our dial condition. You can test any number by typing it in
the Number Pattern Test field and clicking the Right icon; an
O
appears, if
the number typed in matches the dial condition and an
X
appears if it does not
match the dial condition.
• Specify an offset value. In our example, we configure an offset value of 1. The
offset value tells the X6004 how many initial digits (if any) it should strip off
of the dialed number before routing the call to the external line. See
for an example.
