September 7, 2007 K2 Storage System Instruction Manual 163
Configuring RAID

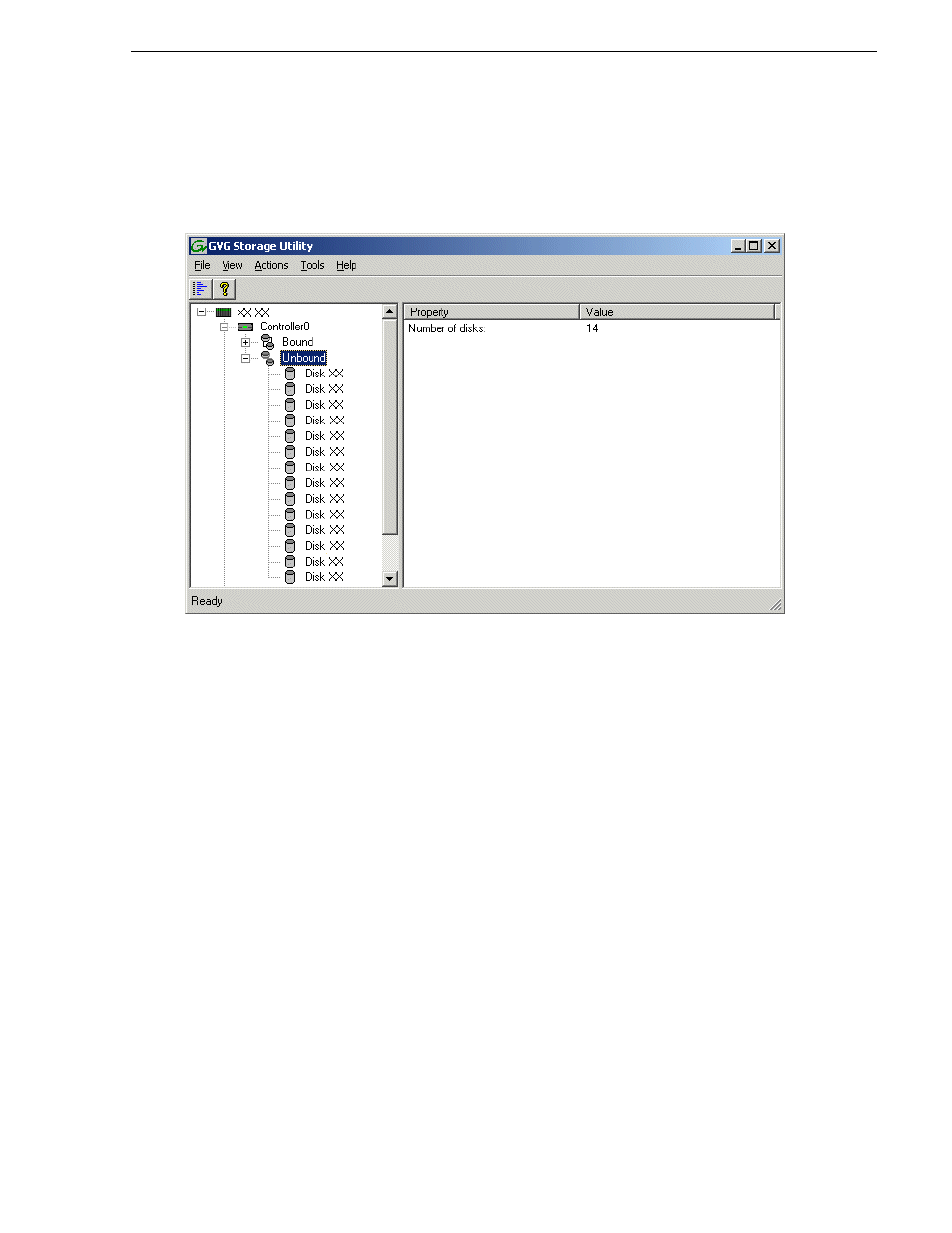

their placement in the hierarchy of the tree view. In the following illustration, disk
numbers are represented by “XX”. Refer to
“Identifying disks” on page 744 for an
explanation of how disks are actually numbered in Storage Utility.
View disk properties and identify the four disks you will use for the metadata/
journal RAID 1 RANKs, the one metadata/journal Hot Spare disk, any other disks
that you intend to use for Hot Spares, and the remainder of the disks that are
available for media storage. Make sure you select disks appropriately as you bind
disks in the remainder of this procedure.
2. To bind unbound disks for media storage, do the following:
a. Right-click the Unbound node for a controller, then select Bind in the context
menu.
The Bind dialog box opens showing all unbound disks for the controller listed
in the Available Disk list.
