Product Features

Amplifier B3 serves Zone 13 ~ zone24.

Software settings for the backup amplifier:

It is necessary to have software settings to make the backup amplifier function.

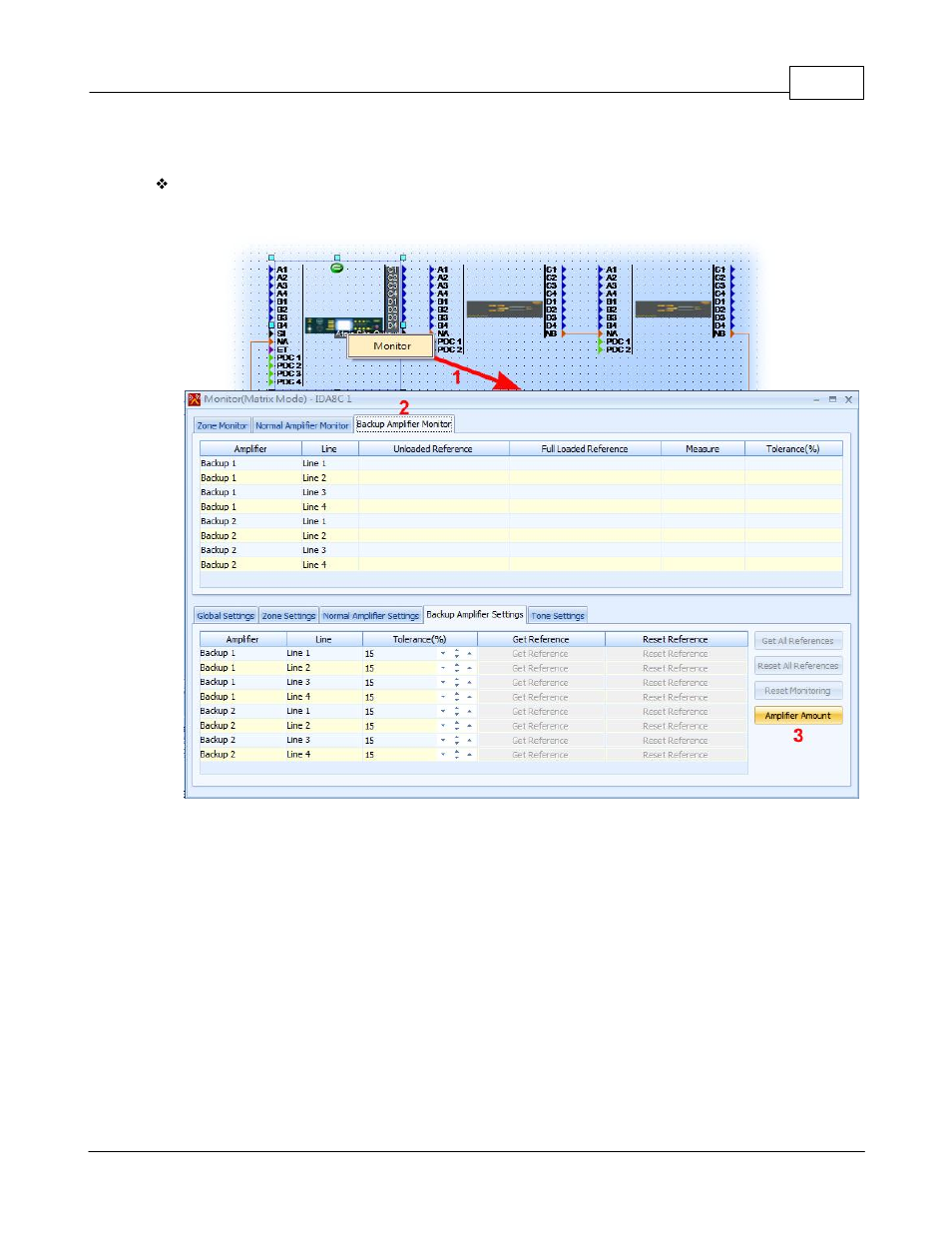

Numbers in the above figure show the steps to ope then backup amplifier settings window:

1. Right click mouse on IDA8C1 block in devices window, then click item [Monitor] to open

window "Monitor(Matrix Mode) - IDA8C1".

2. Select tab [Backup Amplifier Monitor].

3. Click button [Amplifier Amount].

The figure below shows the software setup window for the backup configuration in the Advance
Backup Amplifier Setup :
