Bandwidth @ -3dB = 200Hz ~ 12kHz.
Maximum Cable Length
100m on Category 5 cable
4.2.4.4 Configuration
To make PPM AS work it need to edit configuration using Ateis Studio. Following sections are about
configuration editing.
Create PPM AS Object
Open or create a Ateis studio configuration file, in the [Device] design window, create audio
processor and PSS AS object:
1. Drag audio processor to design window to create audio processor object.
2. Drag PSS AS to design window to create PPM AS object.
3. Wiring to connect green pins between PSS AS object and audio processor.
DSP component configuration

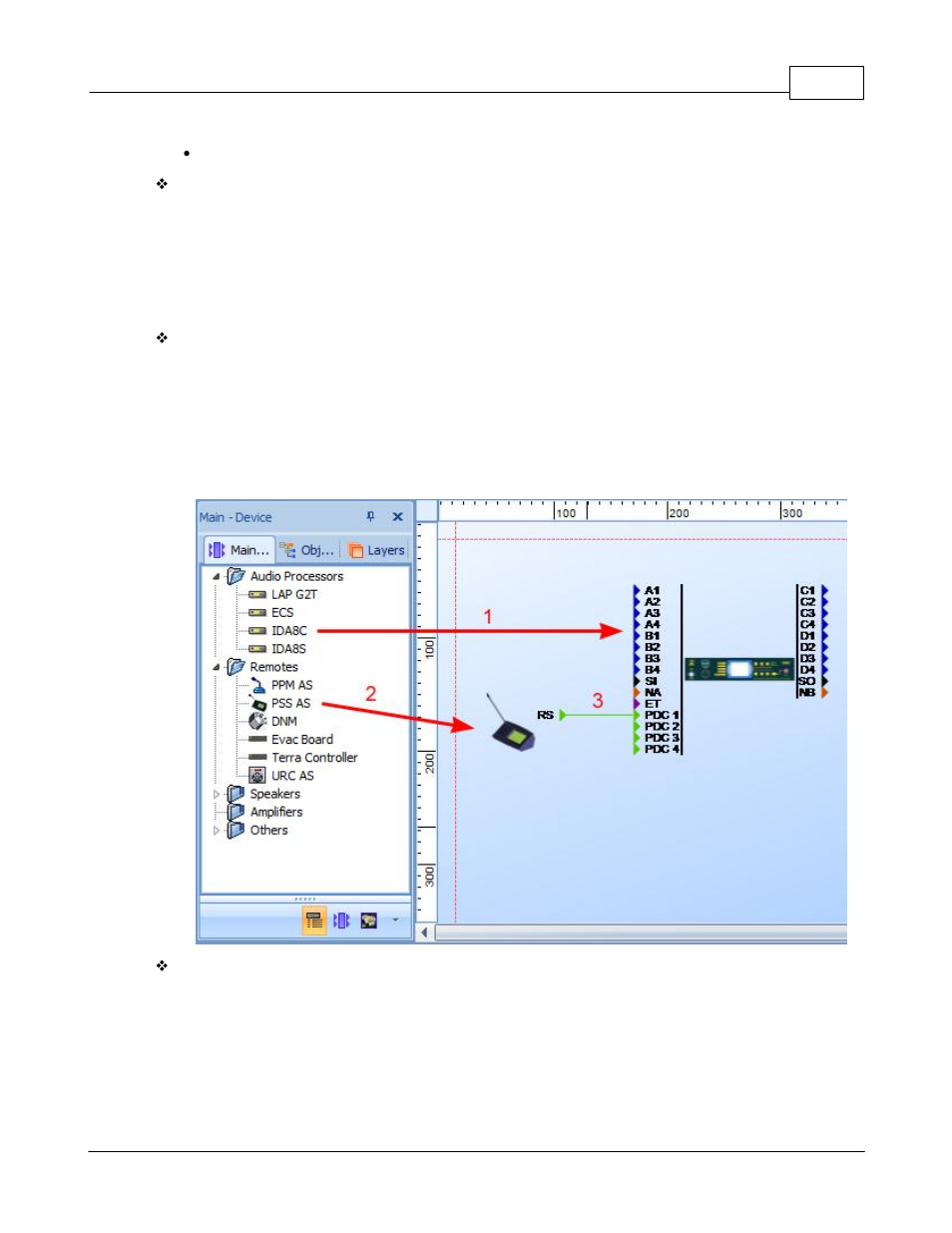

It need to route audio from PPM AS to paging component for paging processing. See the following
example:
