Also, The IDA8 have two detection functions. Short-to-ground: Speaker line to ground detection and
Short-circuit: Between speaker line.
The IDA8C Controller unit is easily configured with our PC based ATEÏS-Studio global software
(Windows compatible). Software access can be password protected. Once programmed, the system will
be able to work independently(off-line) without the need of a PC to be connected.

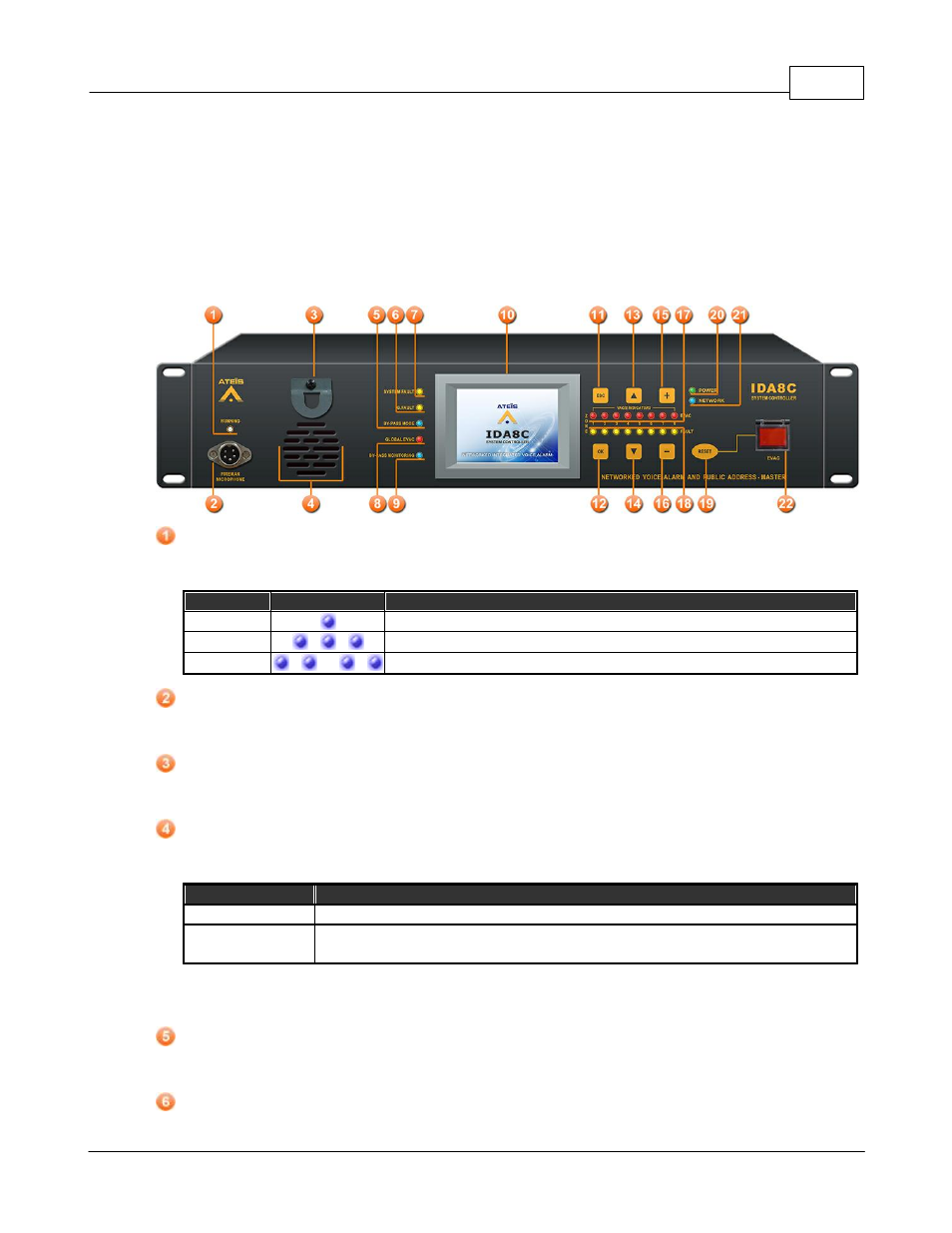

4.1.1.2 Front Panel
Fireman Microphone Active LED:
Shows the activity of the fireman microphone, there are two states of this LED: test
Status Frequency Activity
Permanent Active, Fireman microphone is allowed to paging.
Blinking ° ° Zones are busy, fireman microphone is not allowed to paging.
Blinking ° °°° ° Pre chime is playing.
Fireman Microphone Input:
DIN Connector for fireman microphone connection.
Fireman Microphone Hook:
An U-shape hook to place fireman microphone.
Monitoring Speaker:
The IDA8C integrates a monitoring speaker in front panel. There are two functions of this speaker
Function Activity
Warning Tone A buzzer sound is generated when some faults is detected in system.
Source Monitoring
Monitor audio sources of IDA8C. The source to be monitored can be selected
via Ateis Studio software.
Note: If a fault is detected when speaker is monitoring a source, then the source monitoring will be
interrupted and play a buzzer sound for the fault.
Bypass Mode LED:
To indicate IDA8C is in bypass mode or not.
G.Fault LED:
