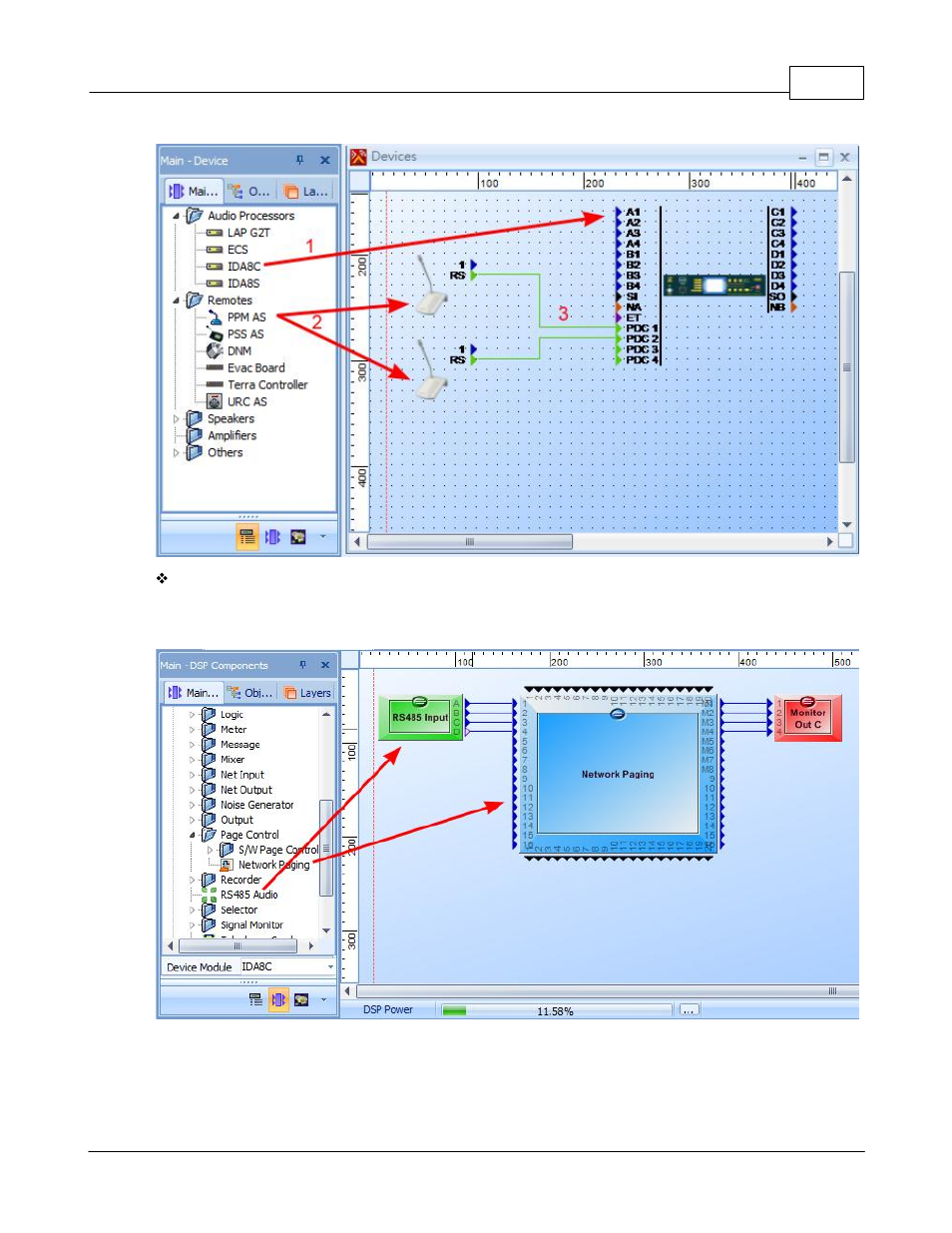

DSP component configuration
It need to route audio from PSC to paging component for paging processing. See the following
example:
Pin A~D of RS485 Input component is corresponds to PSC 1~4 audio plugged in PDC1~4
respectively. Network Paging component process paging request coming from various sources, and
to determine which source is allowed to paging to zones it desired. The zones are M1~M8 on
Network Paging component.You need create an integration paging event to link with PSC, See topic
Network Paging to learn editing paging settings.
