o Line A/B Bad Impedance:
Text messages display at the touch screen on the front panel of the IDA8C:
"Line A Error", where Line A could be Line B.
"Z1 Line A OPEN", where Z1 could be any zone, Line A could be Line B.

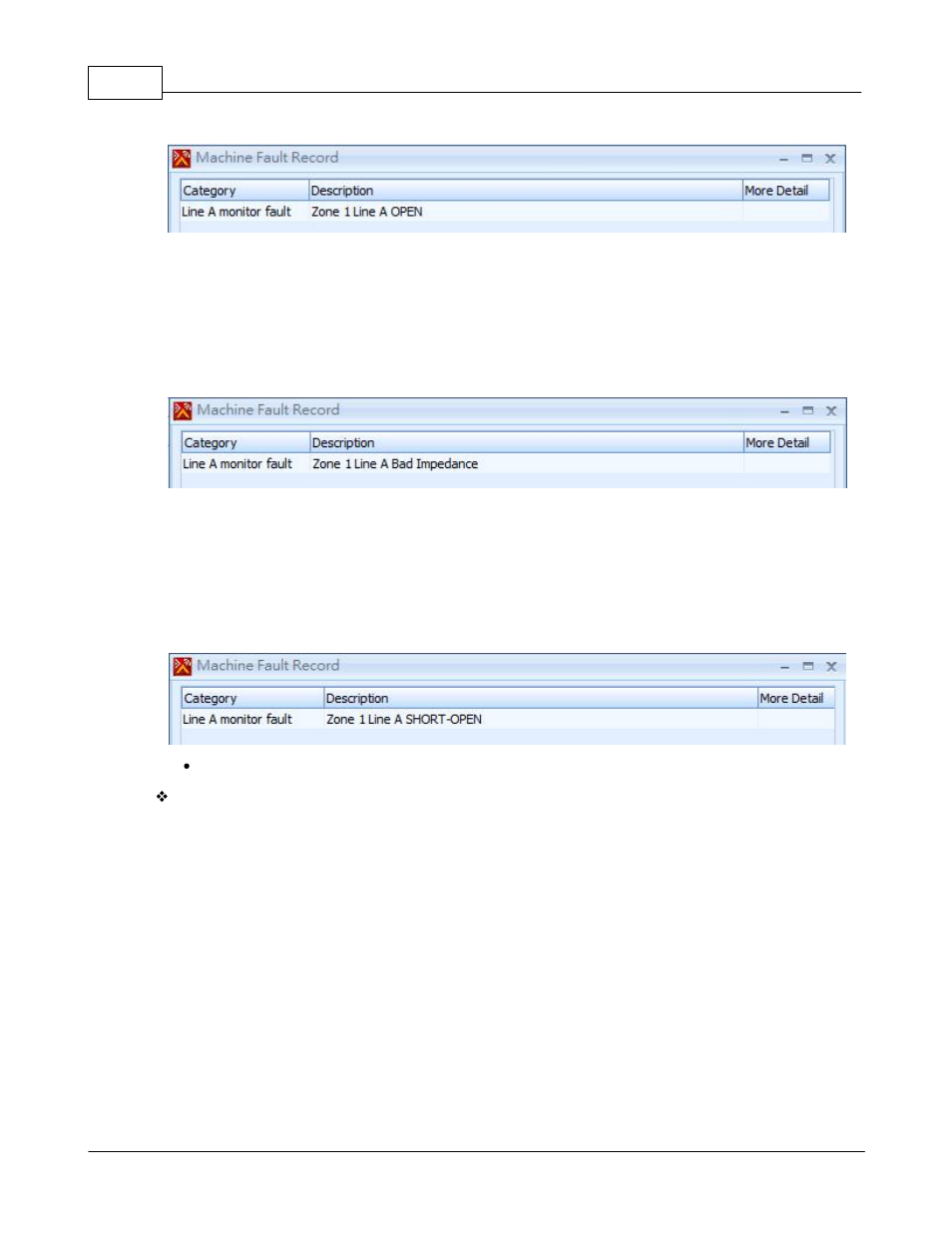

A text message displays at the window [Machine Fault Record] of Ateis Studio:
o Line A/B Short:
Text messages display at the touch screen on the front panel of the IDA8C:
"Line A Error", where Line A can be Line B.
"Z1 Line A SHORT-OPEN", where Z1 can be any zone, Line A can be Line B.
Text message display at window [Machine Fault Record] of Ateis Studio:
A buzzing sound outputs to the monitoring speaker on front panel of the IDA8C.
Fault Handling:
