TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Area
Arcs
During measurement, you can
choose the ARC function to measure
an arc defined by 3 radial points or 2
points and radius.
Select the wished ARC function
after having measured the first
point of arc.
Ensure the central angle of
any arc is always smaller
than 180° (200 gon).
• Three Points
Determine the second and third
points of an arc sequentially.
Completing the third point the
program continues with Dialog
"Measure point".
Simultaneously measure and
record data in the active
measurement job.
Measure a distance
and record data in the
active measurement job.
Measure Mode, continued

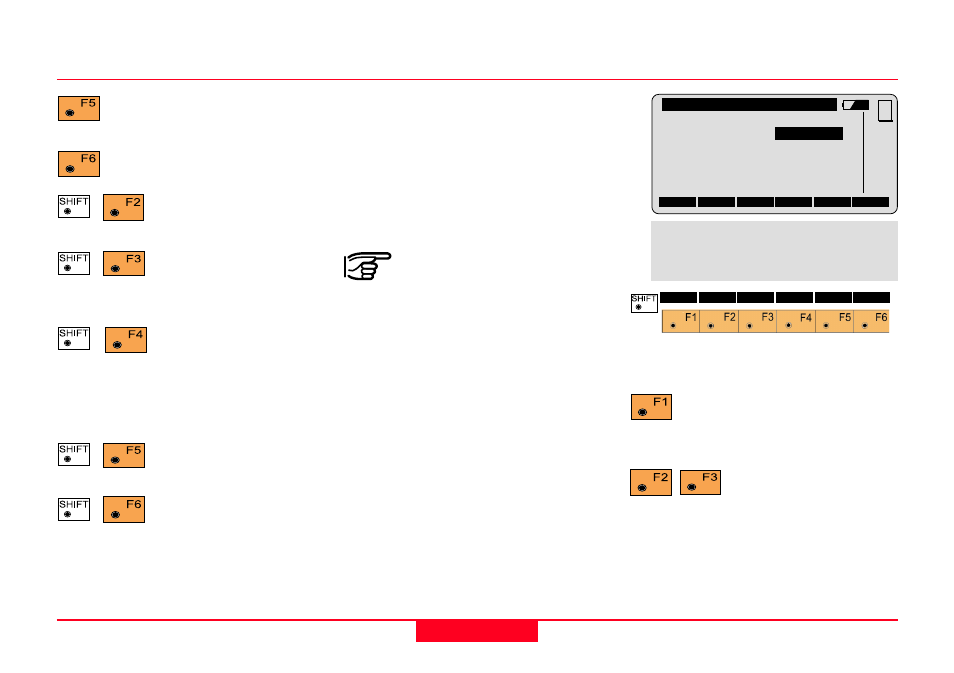

AREA\ 3 Point ARC
3 point ARC, second point:
Point Id
: 1
Refl. Ht. : 0.000 m
Hz : 95°55’50’’
V : 91°16’20’’
Slope Dist: ----- m
ALL DIST REC CONT TARGT IMPOR
MC
RAD QUIT
Elev.Diff.: ----- m
East : ----- m
North : ----- m
Elevation : ----- m
Enter the target data.
(
see User Manual)
Import target coordinates.
Start the "Configuration
editor".
Deletes last completed
segment. Resume at
the start of a new segment.
Close the area polygon
to the start point and
calculates area and length of
perimeter. The display of the results
is shown in
chapter "Calculation".
Select arc as the next
segment.
Quit the Area program.
