TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Road+
Template Offset Ht. Diff.
1 Tutor -35.000 -16.700
2 Tutor -1.500 -0.030
3 Tutor 0.000 0.000
4 Tutor 1.500 -0.030
5 Tutor 35.000 -16.700
6 TypCut -35.000 +16.630
7 TypCut -1.500 -0.030
8 TypCut 0.000 0.000
9 TypCut 1.500 -0.030
10 TypCut 35.000 +16.630
Horizontal Alignment: ALN_EX1.GSI
Station Element Rad/Par Template E N
0.000 Straight 0.000 Tutor 305.000 305.000
7.620 Curve 9.080 Tutor 305.000 312.620
20.298 Straight 0.000 Tutor 312.502 321.562
27.918 EOP 0.000 Tutor 320.007 322.885
Preparing for the example, continued
Vertical Alignment : PRF_EX1.GSI
Chainage Element Rad/Par H
1 0 Straight 0 31.100
2 27.918 EOP 0 31.654
Template: CRS_EX1.GSI
The horizontal alignment file
specifies a template for each
chainage. Our horizontal alignment
file specifies only one template,
"Tutor". You can, however, specify
different templates for any chainage
as you may require. We will define
two templates, "Tutor" and "TypCut",
in our template file.
While running "ROADPLUS", you can
switch templates at any time.
("TypCut" will not be used to stake
out this example)

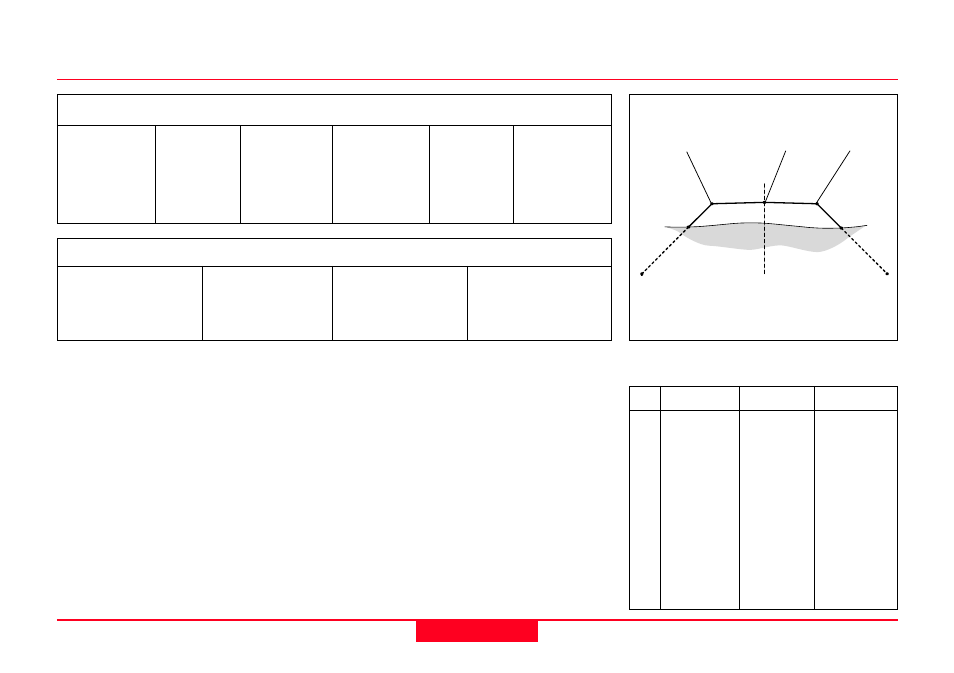

CL
-1.5, -0.03 0, 0 1.5, -0.03
35, -16.7 -35, -16.7
Original
Ground
RPLUS10
