Local Resection

Hz. Ori
Angular correction needed to orient
the instrument

Set orientation and station
coordinates on the

instrument. Note that this key will end
the program.

Record the following results
in the measurement job:

WI 11

Station Point Number

WI 25

Orientation correction

WI 84

Station Easting

WI 85

Station Northing

WI 86

Station Elevation

WI 87

Last reflector height used

WI 88

Instrument Height

Exit the program.

Configuration

Depending on the
configuration that is loaded

onto your TPS1100 instrument, you
may not see some or all of the
options referred to below. See your
Leica Geosystems dealer for more
information about the configuration of
your instrument.

Configuration Editor

Start the "Configuration
Editor" from the

"STATION DATA" dialog.

The "Configuration Editor" sets
parameters for further program
operations:

Two Faces
YES for dual-face measurement,
NO

for single-face.

Meas. Job
Selection of the measurement job for
recording measurements.

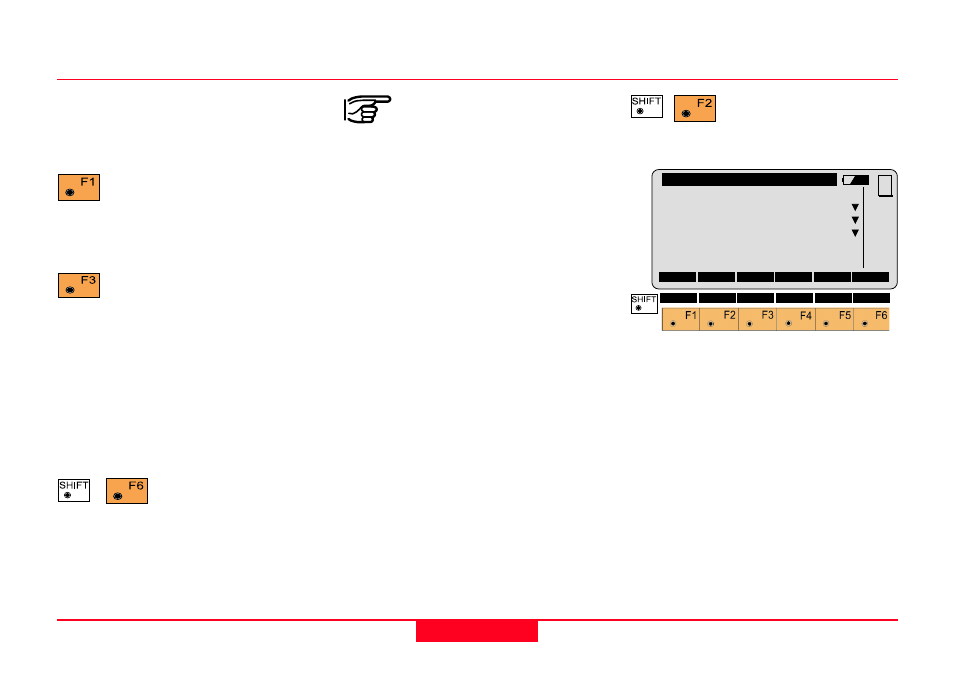

Calculation, continued

LRes\

Configuration

Two Faces :

Meas Job

FILE01.GSI

DATA Job

ALNFILE0.GSI

CONT

DEFLT INFO

QUIT
