89
TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Area
Area
Introduction
This manual describes the "Area"
program of the TPS1100
Professional series.

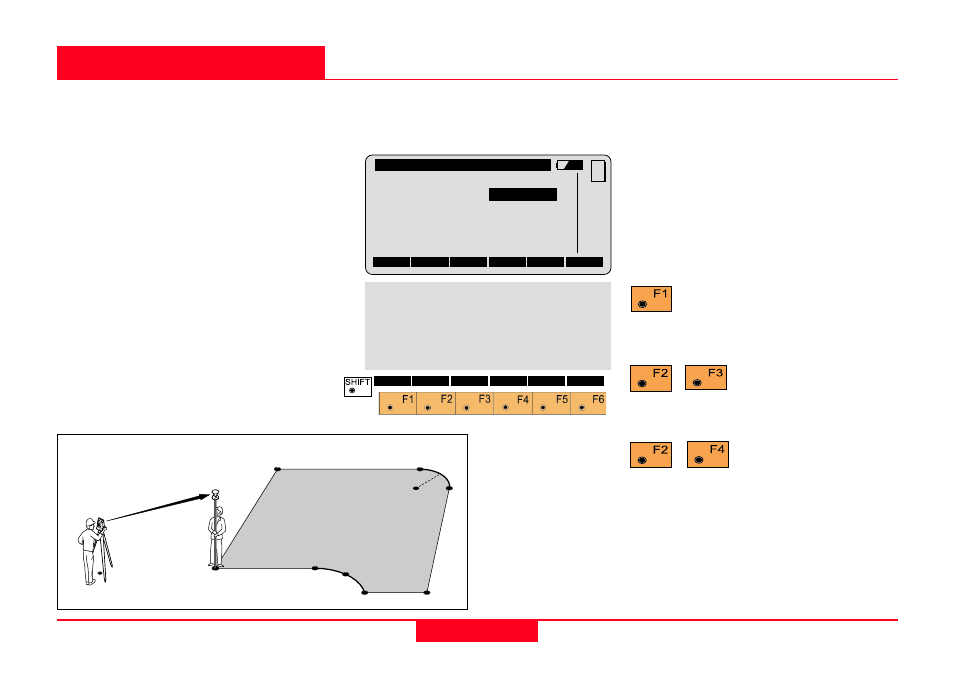

An area can be defined by a series of
straight lines and arcs. Arcs are
defined by 3 radial points or 2 radial
points and radius.
Measure Mode
Straight line
Segs Meas.
Counts the number of segments.
With a new area the segment counter
will be set to zero.
Seg. Len.
Length of the last straight line
segment measured.
Simultaneously measure and
record data in the active
measurement job.
Measure a distance
and record data in the
active measurement job.
Measure a distance
without recording.
AREA\ Measure Point
Segs Meas.: 0
Point Id : 2
Refl. Ht. : 0.000 m
Hz : 95°55’50’’
V : 91°16’20’’
Slope Dist: ----- m
ALL DIST REC CONT TARGT IMPOR
MC
CONF DEL CALC ARC QUIT
Height Dif: ----- m
East : ----- m
North : ----- m
Elevation : 206.7963 m
Azimuth : 182°25’05’’
Seg.Length: 0.203 m
3-point arc
1
100pr52
Area = ?
Radius arc
1st Point
