Page 41

41
TPS1100 - Appl. Prog. Ref. Manual 2.2.0en
Stakeout

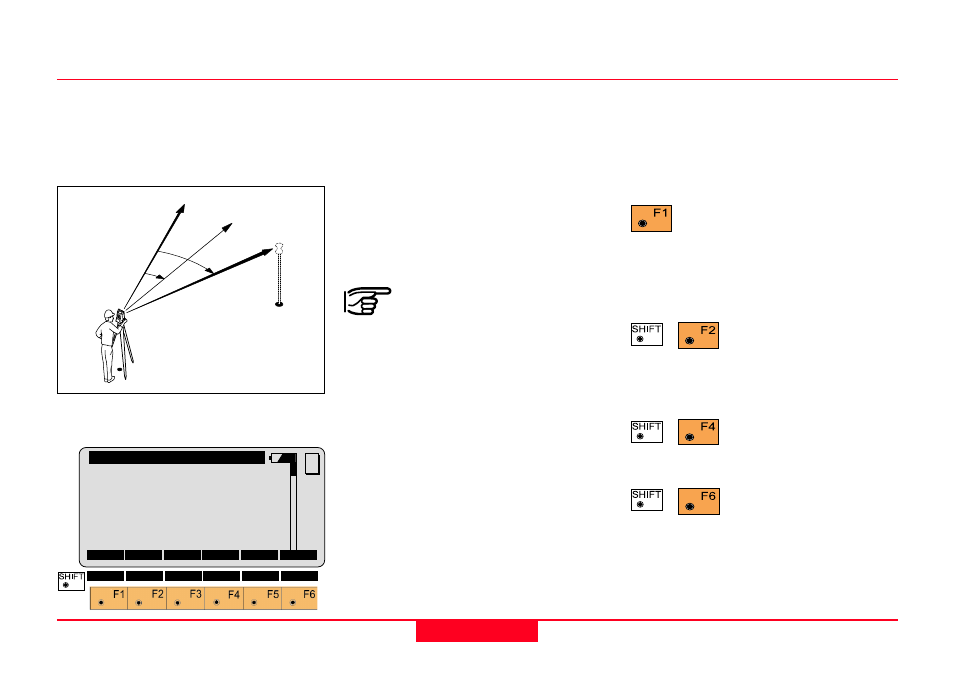

Azimuth and Distance
This mode defines the point to be
staked in terms of the azimuth and
distance from the theodolite station to
the point.
Point Id
Point Id of the point to be staked.
Azimuth
Azimuth from the station to the point
to be staked.
Hz
Present theodolite direction.
Note, if the instrument is
oriented and the azimuth
and Hz angle are corresponding,
the instrument is pointing to the
point to be staked.
Slope Dist
Slope distance from the instrument
station to the stakeout point.
Horiz. Dist
Horizontal distance from the
instrument station to the stakeout
point.
Proceed to "STAKEOUT".
Motorized theodolites can
drive the telescope to the horizontal
and vertical direction of the point to
be placed.
Change stakeout
method.
For more information refer to chapter
"Select Stakeout Method".
Generate a plot of the
stakeout data. For
more information to chapter "Plot".
Exit the program.
STAKE\Azimuth and Distance
Point Id
:
12
Azimuth
:
30°03'23''
Hz
:
15°43'02''
Slope Dist:
35.60 m
Horiz Dist:
34.97 m
∆∆∆∆∆
Height
:
0.75 m
STAKE
MC
QUIT
∆∆∆∆∆
Height
Height difference from the instrument
station to the stakeout point.
N
Hz
Azimuth
Slope Distance
12
1
100pr07
Hz = 0°00'00"
