84
TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Hidden Point
Note: When using the
Hidden Point program, you
must NOT change the target
properties with the TARGT function,
except to set the ppm for the
measurements. The prisms on the
hidden point rod MUST be defined in
the CONFIGURATION of Hidden
Point.
Change the theodolite
face.
Press this key
combination to quit the
Hidden Point program at any time.
Measure Rod

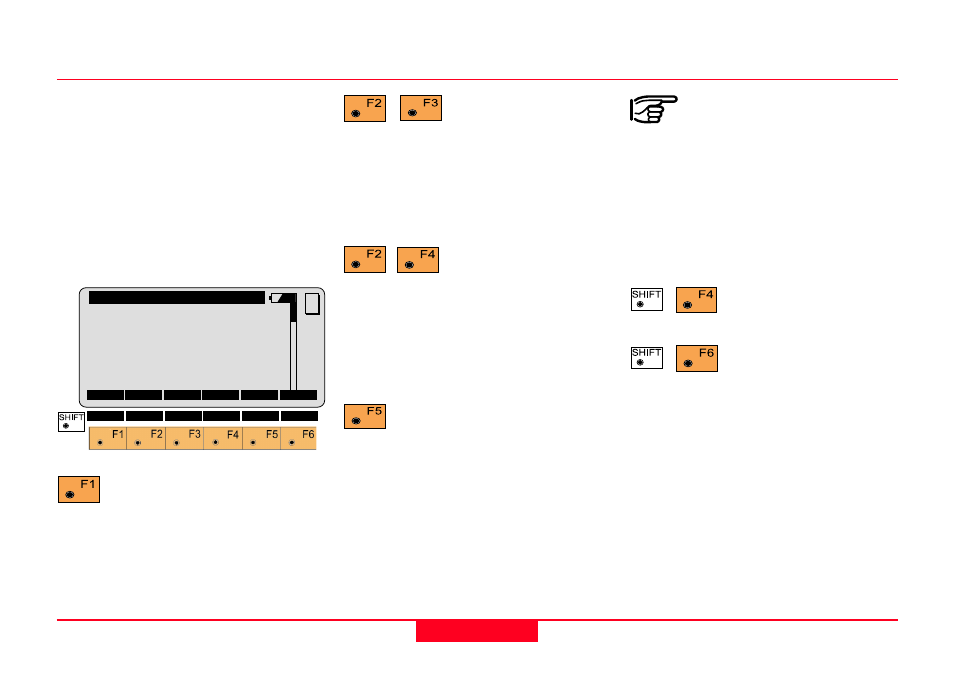

The program will display the TPS
1100 "Measure & Record"dialog or
the dialog shown below.
If the difference of the given and
measured spacing between the
prisms exceeds the "Meas. Tol. limit"
a message is displayed.
You may accept the measurement or
re-measure the prism. Measure a distance.
Record the
measurement in the active file and
proceed with the same dialog for the
next prism. If the last prism has
already been measured, the program
will proceed to the "RESULT" dialog.
Measure the distance.
Accept the
measurement without recording.
Proceed with the same dialog for the
next prism. If the last prism has
already been measured, the program
will proceed to the "RESULT" dialog.
Enter the target data. (see
User Manual)
Simultaneously measure and
record in the active file.
Proceed with the same dialog for the
next prism. If the last point has
already been measured, the program
will proceed to the "RESULT" dialog.
HDNPT\ Measure Reflector 1
Point Id : Station12
Hz : 16°55’50’’
V : 91°16’20’’
Slope Dist: ----- m
Ht. Diff. : ----- m
ALL DIST REC CONT TARGT
MC
CONF I<>II QUIT
