TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Hidden Point
Configuration
Start the
"Configuration Editor"
from the "MEASURE" dialog.
User Display
YES user defined display
NO
the default display of the
program "HIDDEN POINT".
Auto pos.
When ON, the program will
automatically point the telescope of a
motorized theodolite at the third
prism once the first two prisms have
been measured. The exact pointing
must be made manually.
Rod Length
Total length of hidden-point rod.
Dist. R1-R2
Spacing between the centers of
reflector R1 and prism R2.
Dist. R1-R3
Spacing between the centers of
prism R1 and prism R3. Enter only
for rods with three prisms. Prism 3
must be situated between prism 1
and 2.
Refer to Figure on page 79, which
illustrates a hidden point rod with
three reflectors.
Meas. Tol
Limit for the difference between the
given and measured spacing of the
reflectors. If the tolerance value is
exceeded, the program will issue a
warning.
In case of measurements with 3
prism the values is used as limit for
the max. deviation of the 3
measurements.
Add. const.
Input of prism constant for the prisms
of the rod. The prism constant set in
the system is disregarded.
No. of Refl.
Number of the prisms on the rod you
are using. Move the input cursor to
this line, then toggle to either 2 or 3.

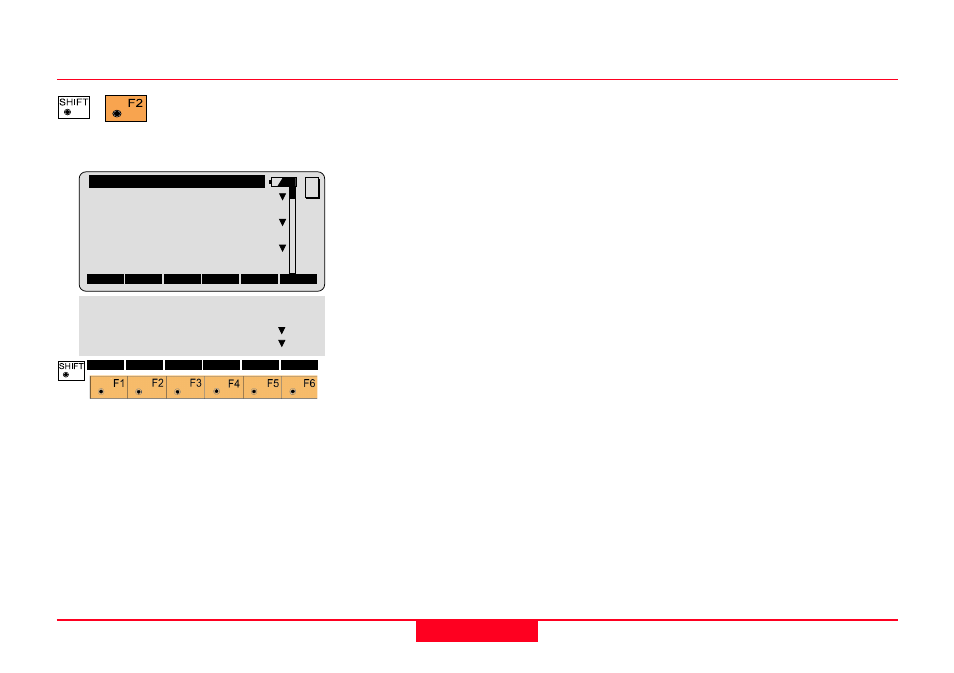

HDNPT\ Configuration
User Disp.: NO
Meas. Tol.: 0.020 m
Reflector :Leica refl.tape
Add.Const :
0.0 mm
No.of Refl: 3
Rod Length: 5.000 m
CONT DEFLT INFO
MC
QUIT
Dist R1-R2: 1.000 m
Dist R1-R3: 0.500 m
Meas Job : FILE01.GSI
Data Job : FILE02.GSI
