TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Road+ File Editor
Header Record
You will see this dialog if you created
a new or selected an existing Station
Equation File.
Job Id
You may edit the Job Identifier
offered here, or accept the default
offered. The Job Id is used by Road+
to determine which project data files
are likely to be associated together.
File Id
The File Id of a Station Equation File
is "STAEQTN" and may not be
changed.
You will see this dialog if you selected
"INS" on the Header Record dialog in
a Station Equation File.
Sta. Eqn.
The number, starting from 1, of the
equation in the Horizontal Alignment.
Ahead
The value from which the Stationing
continues forward along the
Horizontal Alignment.
Back
The value from which the Stationing
decreases backward along the
Horizontal Alignment.
Insert Station Equation Search
You will see this dialog if you selected
"SEARC" on the previous dialog.
Direction
Select the direction you wish to
search from the current record.
Sta. Eqn.
Input the Station Equation number for
which you wish to search.

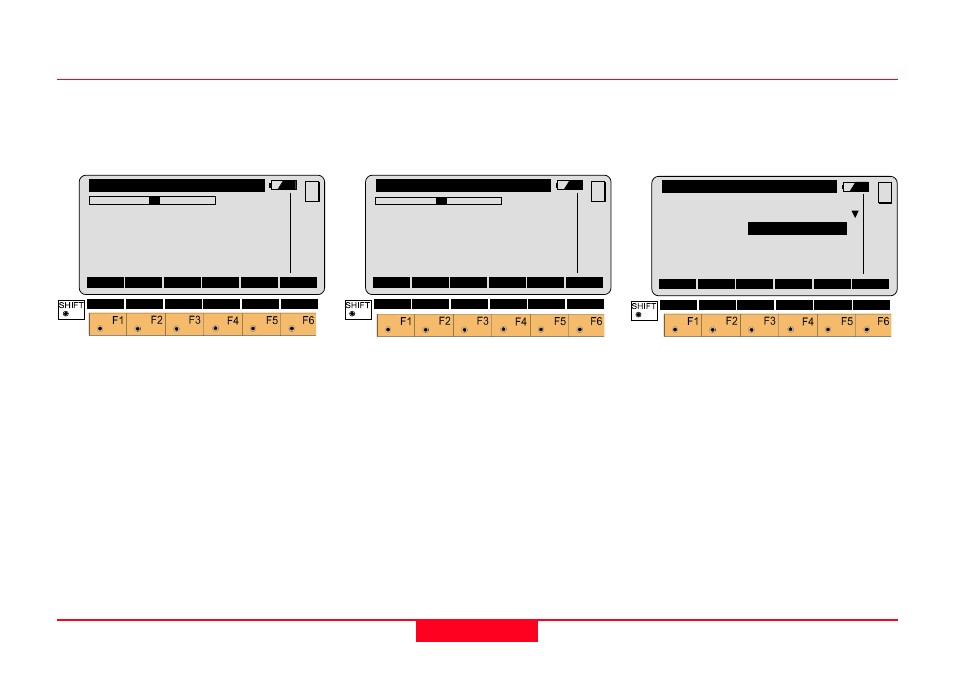

REdit\ View/Edit File
1/ 1
Job Id : JOB_ID
File Id : 0STAEQTN
INS DONE
MC
|<<- ->>| SEARC QUIT
REdit\ View/Edit File
2/ 2
Sta. Eqn. : 0
Ahead : 0.000 m
Back : 0.000 m
INS DONE <--
MC
DEL |<<- ->>| SEARC QUIT
REdit\ Search
Direction : Forward
Sta. Eqn. : -----
SEARC
MC
QUIT
