192
TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Road+ File Editor
Station Equations
New Station Equation File

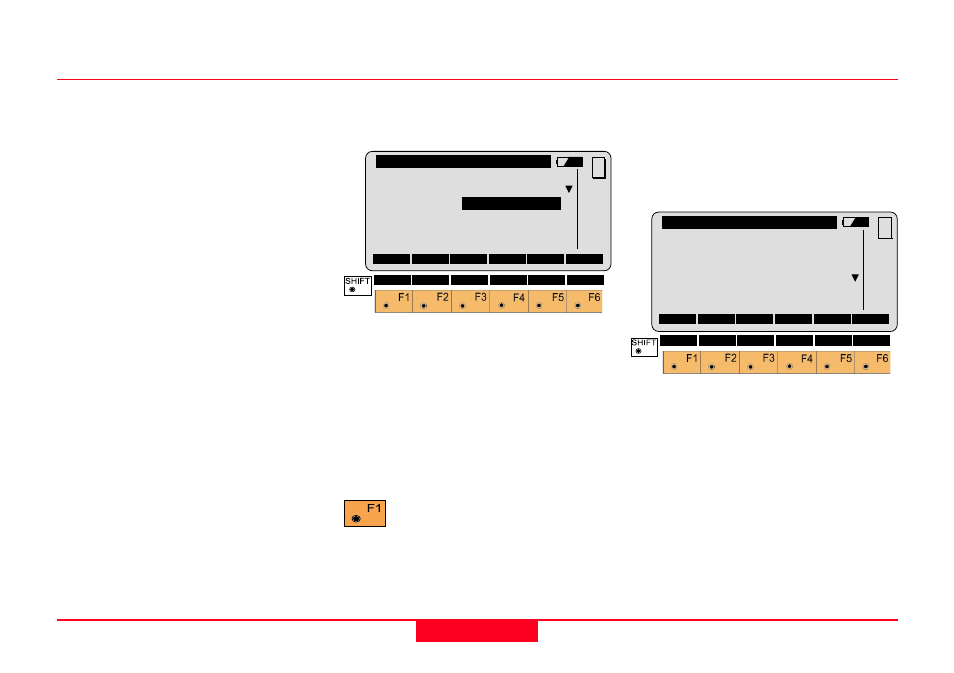

You will see this dialog if you selected
File Type "Station Equation" and
pressed "CREAT" on the previous
dialog.
Search
You will see this dialog if you selected
"SEARC" on the previous dialog.
Press this key to search for
the input Cross Section name
or number.
Slope (Optional)
The ratio of the
∆
Horizontal Distance
to the
∆
Vertical Distance from the
Hinge Point to the existing ground.
The slope must be assigned only to
the first and last points (hinge points)
in a Cross Section. All points falling
between the hinge points must have
a slope of zero.
If the design surface is rising toward
the right, the slope is a positive value.
If the design surface is falling toward
the right, the slope is a negative
value.
Insert Cross Section Point, continued
Direction
Select the direction you wish to
search from the current record.
Template
Input the Cross Section name or
number for which you wish to search.
File Type
Displays the type of file that is being
created.
File Name
Input any 5 character DOS-legal file
name.
Decimals
Select the number of decimal places
to be used in this file.
REdit\ Search
Direction : Forward
Template : -----
SEARC
MC
QUIT
REdit\ Create File
File Type : Sta. Eqn.
File Name : -----
Decimals : 3 Dec.
CONT
MC
QUIT
