102
TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Sets of Angles
• Measure Set
At the conclusion of the learning
phase, select Measure Further Set.
You will be prompted to make the
measurements, in the sequence you
selected in Configuration, to
complete the first Set of
measurements.
- Non-motorized instruments will
display the Telescope Positioning
dialog to help you find the target
points in sequence.
- Motorized instruments will
automatically turn to the target
points in sequence. You must
refine the pointing manually. After
completing the first set, the
program returns to the Sets Menu.
- With TCA- or TCRA-instruments
and Auto. Meas. = ON, the first set
will be completed automatically
and the program returns to the
Sets Menu.
Set no.
Displays the number of the set
currently being measured.
Seq. no.
Displays the sequential number of
the point currently being measured.
Face
Displays the required instrument face
for this measurement.
You will use this dialog to measure all
additional sets at this instrument
station.
Measure Mode, continued
Point Id
Displays the Point Id of the point
currently being measured.
Refl. Ht.
Displays the Reflector Height of the

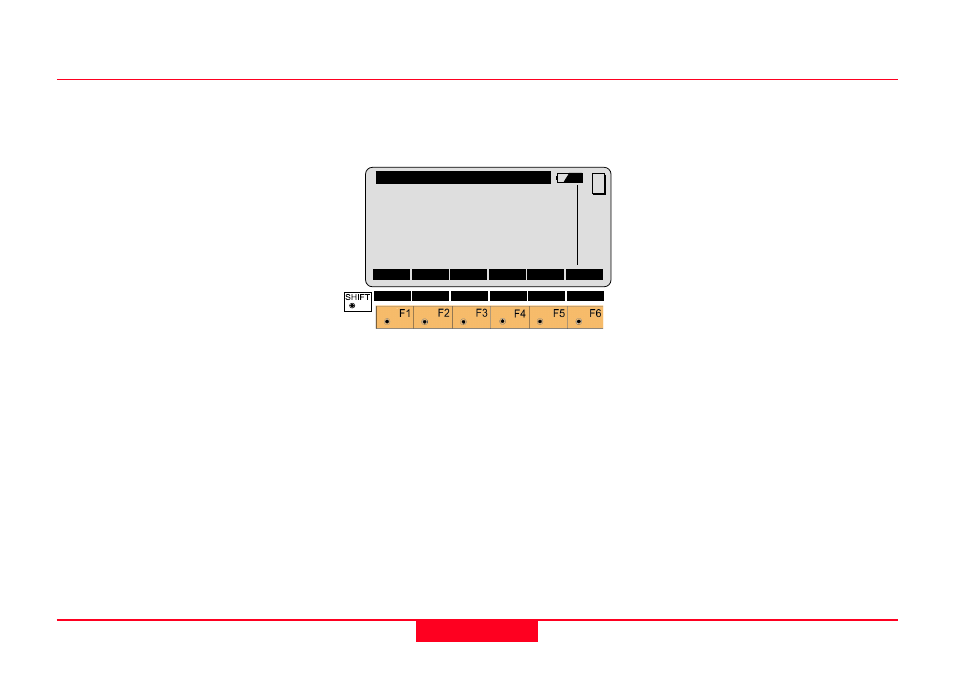

point currently being measured. SETS\ Measure Set
Set No. : 1
Seq. No. : 1
Face : I
Point Id : 501
Refl. Ht. : 1.300 m
MC
QUIT
MEAS <-- --> DONE
