TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Road+
∆∆∆∆∆
Catch Offs
The horizontal offset from the catch
point to the last measurement.
∆∆∆∆∆
Catch HgtD
The vertical offset from the catch
point the last measurement.
∆∆∆∆∆
Hinge Offs
The horizontal offset from the hinge
to the last measurement.
∆∆∆∆∆
Hinge HgtD
The vertical offset from the hinge to
the last measurement.
∆∆∆∆∆
CL Offset
The horizontal offset from the
centerline to the last measurement.
∆∆∆∆∆
CL HgtDiff
The vertical offset from the centerline
to the last measurement.
∆∆∆∆∆
V fmSlope
Vertical distance from Cut- or Fill-
slope at the specified station.
Centerline
RPLUS13
Slope
Slope ratio of Cut- or Fill slope.
Elevation
Elevation at measurement.

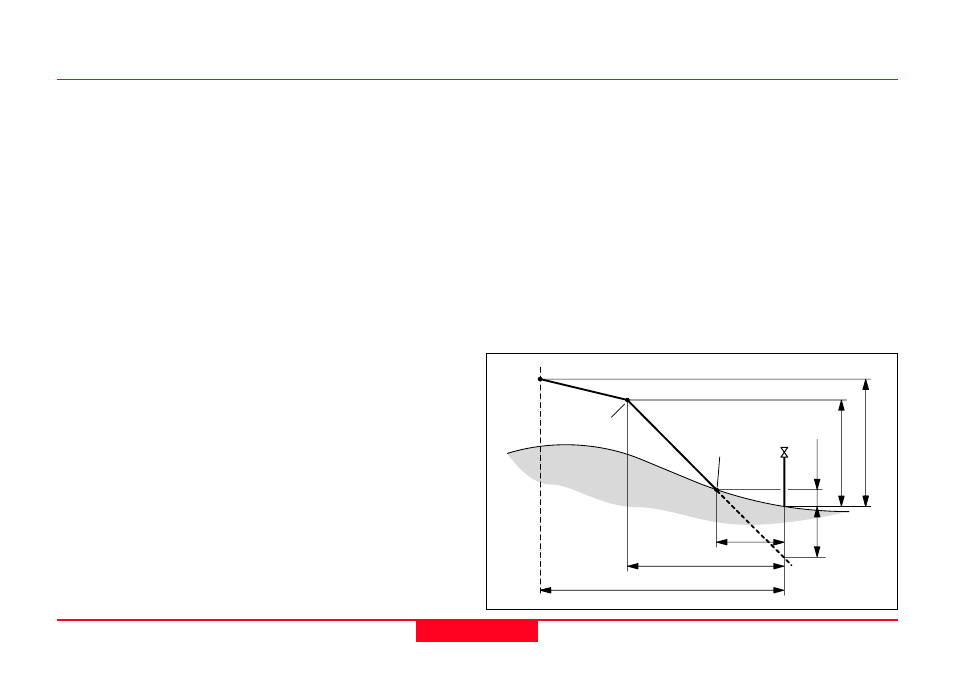

The following illustration represents
the various components of the
REFPT option.
∆
CL Offset
∆
Hinge Offs
∆
Catch Offs
∆
CL HgtDif
f
∆
Hinge HgtD ∆
Catch HgtD
Reference Point, continued
Hinge
Slope
(measured)
catch
point
∆
V fmSlope
