TPS1100 - Appl. Prog. Ref. Manual 2.2.0en Resection
Resection
Introduction

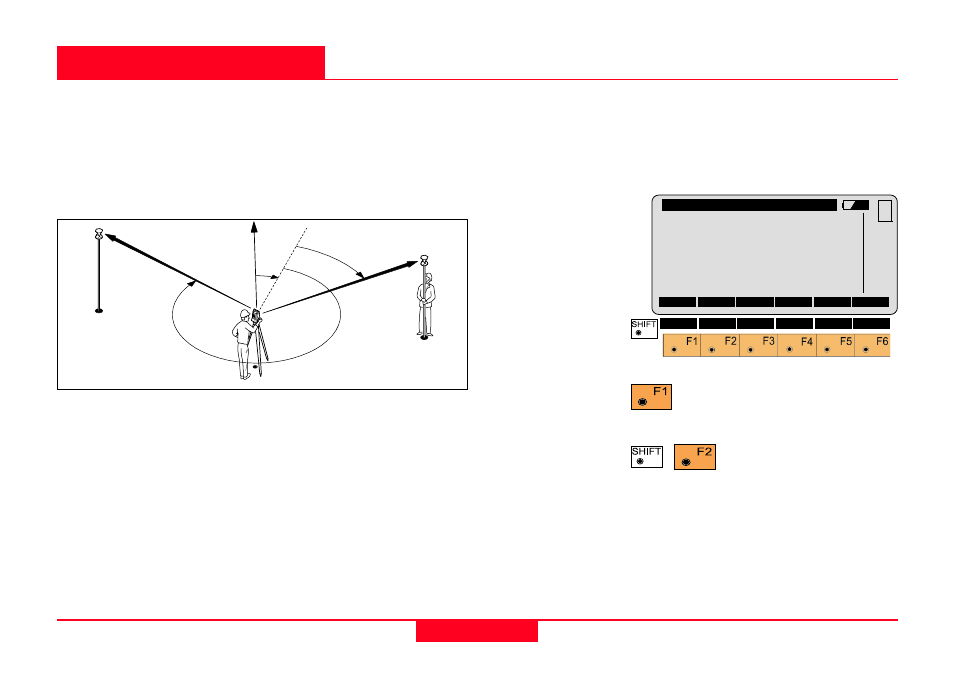

This manual describes the
"Resection" program of the TPS1100
Professional Series.
The program can be used to reduce
the three-dimensional coordinates for
the instrument station and the
orientation of the horizontal circle
from measurements to 2 target
points with know Easting and
Northing. To compute the position
coordinates, at least the distances
and the directions for both points are
necessary.
Station Data
Enter station point number and height
of the instrument.
Proceed to the dialog "Target
Point".
Start the
"Configuration".
Resec\ Station Data
Station Id: 1
Inst. Ht. : 1.555 m
CONT
MC
CONF QUIT
1
100pr03
1st target
Dist 1
Hz1 Hz=0
For simultaneous determination of
the station elevation, height of
instrument and height of reflector
must already have been input and
the elevation of the target points
must be known.
The program allows measurement in
single or dual-face mode.
Dist 2
2st target
Orientation
Hz2
