STC-2000A DEPOSITION CONTROLLER
y
PROBLEM INDICATIONS
If the memory module LED is not illuminated in either or both of the WP switch positions or if the LED is
amber in either or both WP switch positions, the memory module is not connected properly, or the
memory module itself (500-210) is malfunctioning or the memory module interface PCB (500-212) is
malfunctioning. In any of these cases, neither the memory integrity of the module nor the integrity of data
transactions with the module should be considered valid.
MEMORY MODULE PLACEMENT

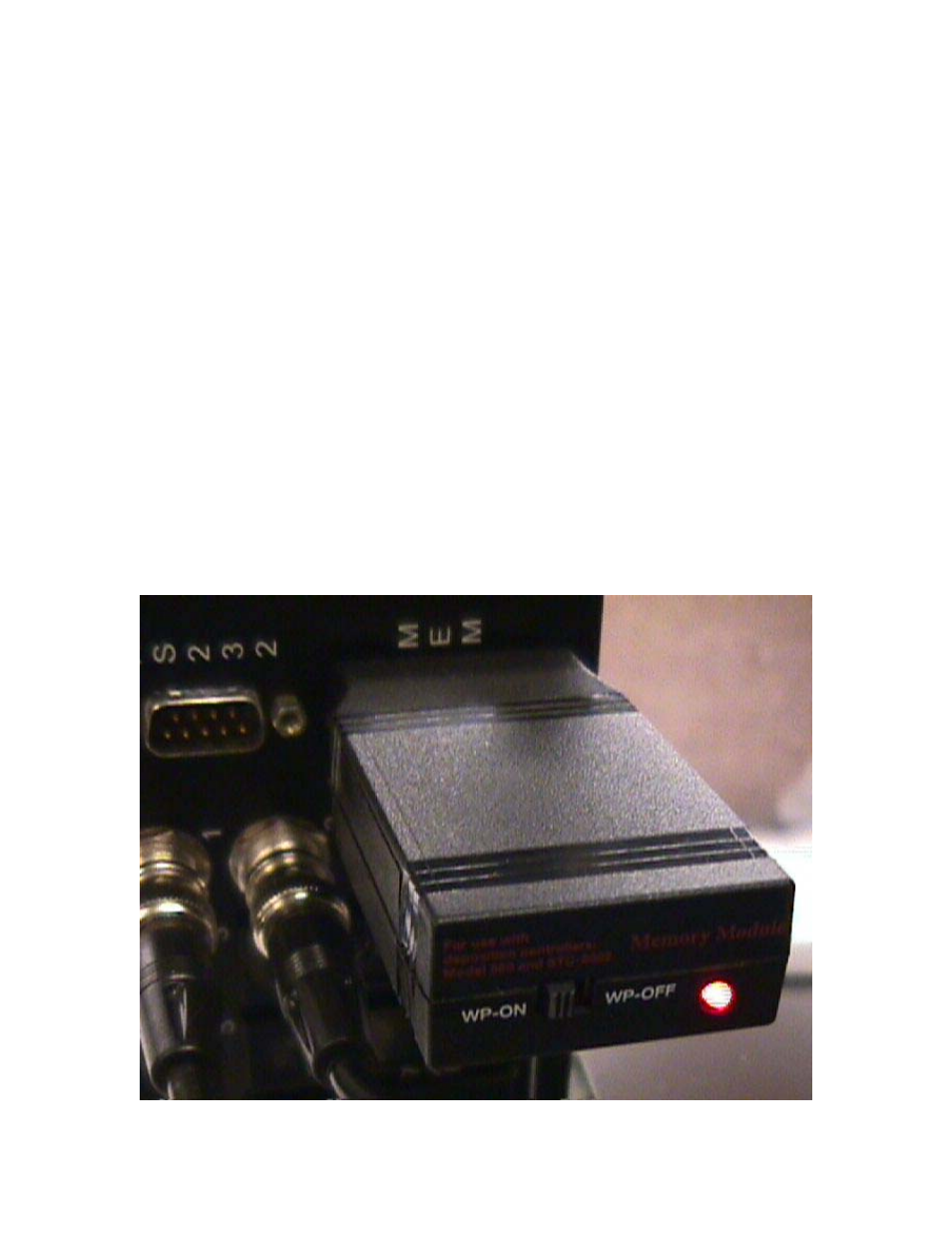

The picture below shows the Memory Module plugged into the STC-2000A back panel. If this
placement is inconvenient, a standard VGA/SVGA monitor extension cable can be used to bring the
Memory Module to a more accessible location.
BELKIN model F2N025-06-E is an example of this type of cable. It has the following
characteristics: high density 15 pin D-sub female at one end, high density 15 pin D-sub male at the other
end, 6 ft. shielded cable w/ 28 AWG stranded wires, pin for pin connections (pin 1 to pin1, pin 2 to pin 2,
etc. except for pin 9 which is a no connect)
SECTION 3.XX
page 128 of 292
