Monitoring and managing the switch

50

Displaying port information

There are several ways to display the Port Properties dialog box:

Double-click a port connector in the Hardware view.

Right-click a port connector in the Hardware view and click Port Properties.

Double-click the port row in the Port List view table.

Right-click a port connector in the Performance view and click Port Properties.

Right-click a port’s row in the Port List view and click Port Properties.

Right-click a port’s row in the Node List view and click Port Properties.

Click a connector, port row, or bar graph in the preceding views or select Product > Port >

Port Properties.

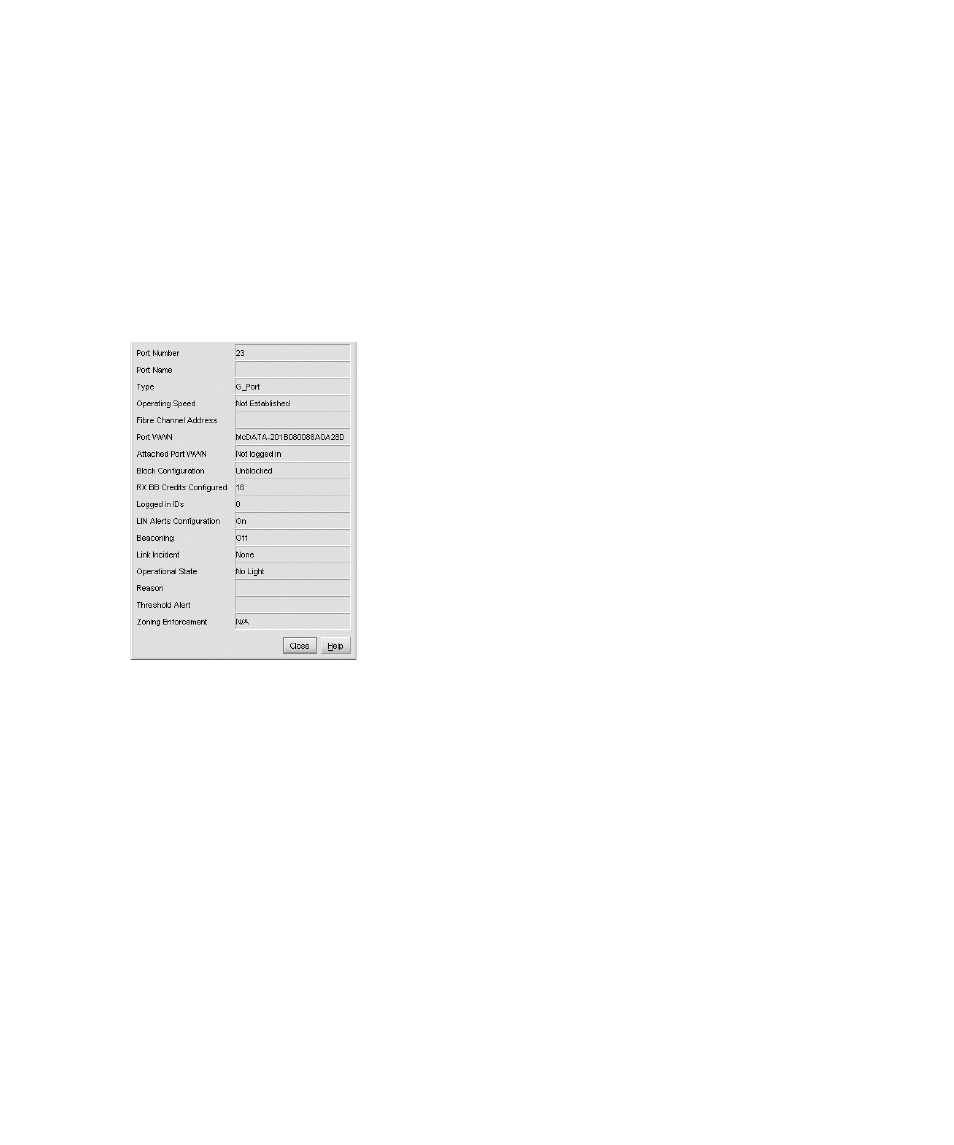

Figure 11

Port Properties dialog box (Edge Switch 2/32)

Port properties parameters

The Port Properties dialog box provides the following information in each of the listed fields:

Port Number—The physical port number.

Port Name—User-defined port name or description. See ”

Configuring ports

” on page 107 for

instructions.

Type—Displayed the port type, as follows:
• G_Port—Displayed if nothing is logged into the port or the port is configured to be a G_Port.
• F_Port—Displayed if a device is logged into the port or the port is configured to be an

F_Port.

• E_Port—Displayed if the port is connected to another switch’s E_Port through an ISL or the

port is configured to be an E_Port.

• FL_Port—Displayed if a loop device is logged into the port.
• FX_Port—Displayed if the port is configured to be an FX_Port.
