Edge Switch Element Manager user guide

17

You can install the HAFM and Element Manager clients on remote computer systems, as shown in

Figure 1

on page 17. For instructions, refer to the section in the HP StorageWorks HA-Fabric

Manager user guide that pertains to the operating system of your computer.

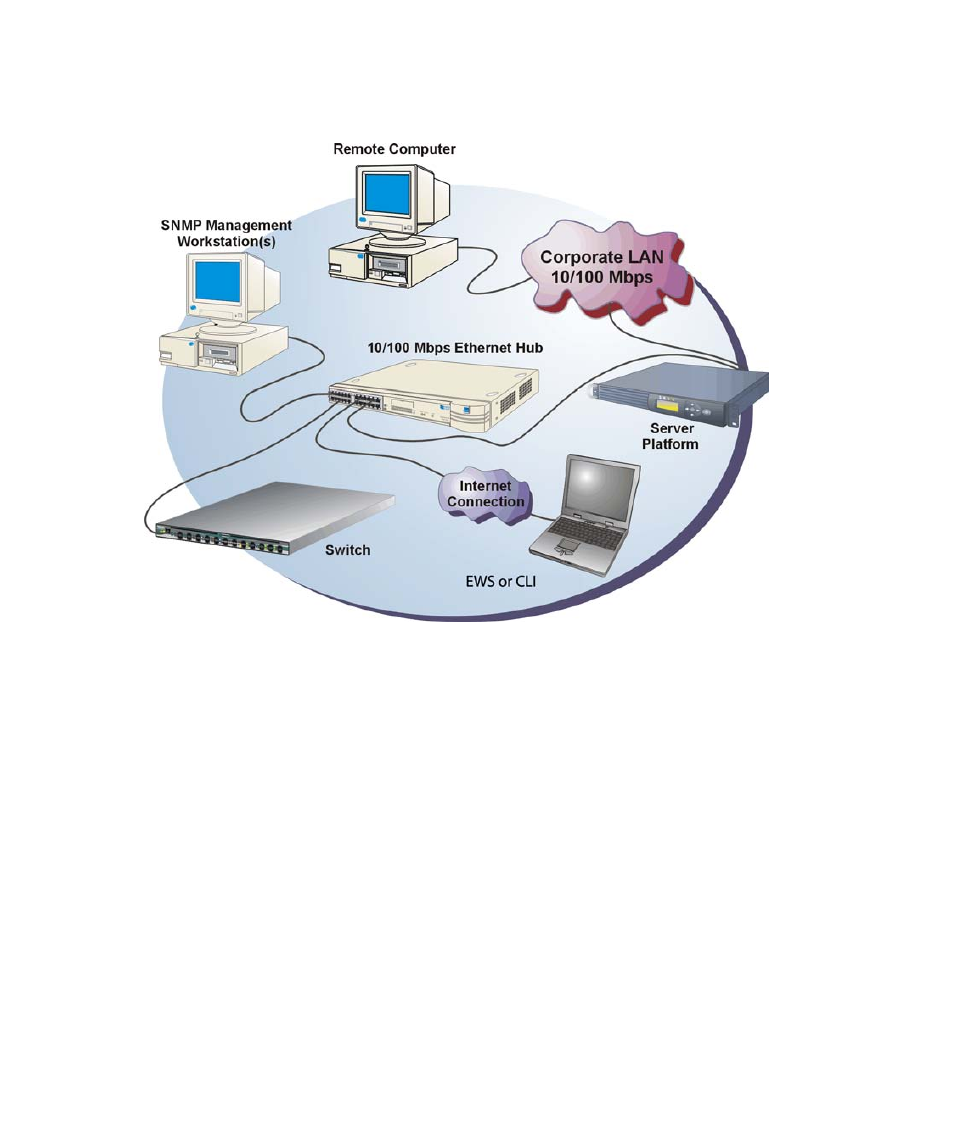

Figure 1

HAFM appliance and remote client configuration (dual Ethernet)

Using the Element Manager, you can:

Perform system tasks:
• Back up and restore configuration data.
• Clear the system error indicator.

Configure the following Element Manager features:
• Fibre Channel operating parameters for the fabric, such as R_A_TOV, E_D_TOV, switch

priority, and interop mode. You can also configure Fibre Channel operating parameters for

the switch, such as preferred and insistent domain ID, rerouting delay, and domain register

for state change notifications (domain RSCNs).

• individual ports with a port name describing the node attached to the port.
• Keys for new features.
• Interoperability mode for open switch fabrics.
• Preferred Paths for interswitch links (ISLs).
• link incident (LIN) alerts.
