Element Manager overview

38

Display options—Allows you to display attached devices listed under the Port WWN column in

the Node List view by the device’s nickname, configured through the Define Nickname option or

the device's WWN.

These options are also available when you click a port row and then select Product > Port.
For details on navigating and monitoring via the Node List view, see ”

Node List view

” on page 61.

Performance view

Click the Performance view tab.

Figure 7

shows an example of the Performance view. This view

provides a graphical display of performance for all ports. The top portion of the Performance view

displays bar graphs that show the level of transmit/receive activity for each port. (Use the scroll bar

to view bar graphs for all the ports.) The information in this view updates every five seconds.

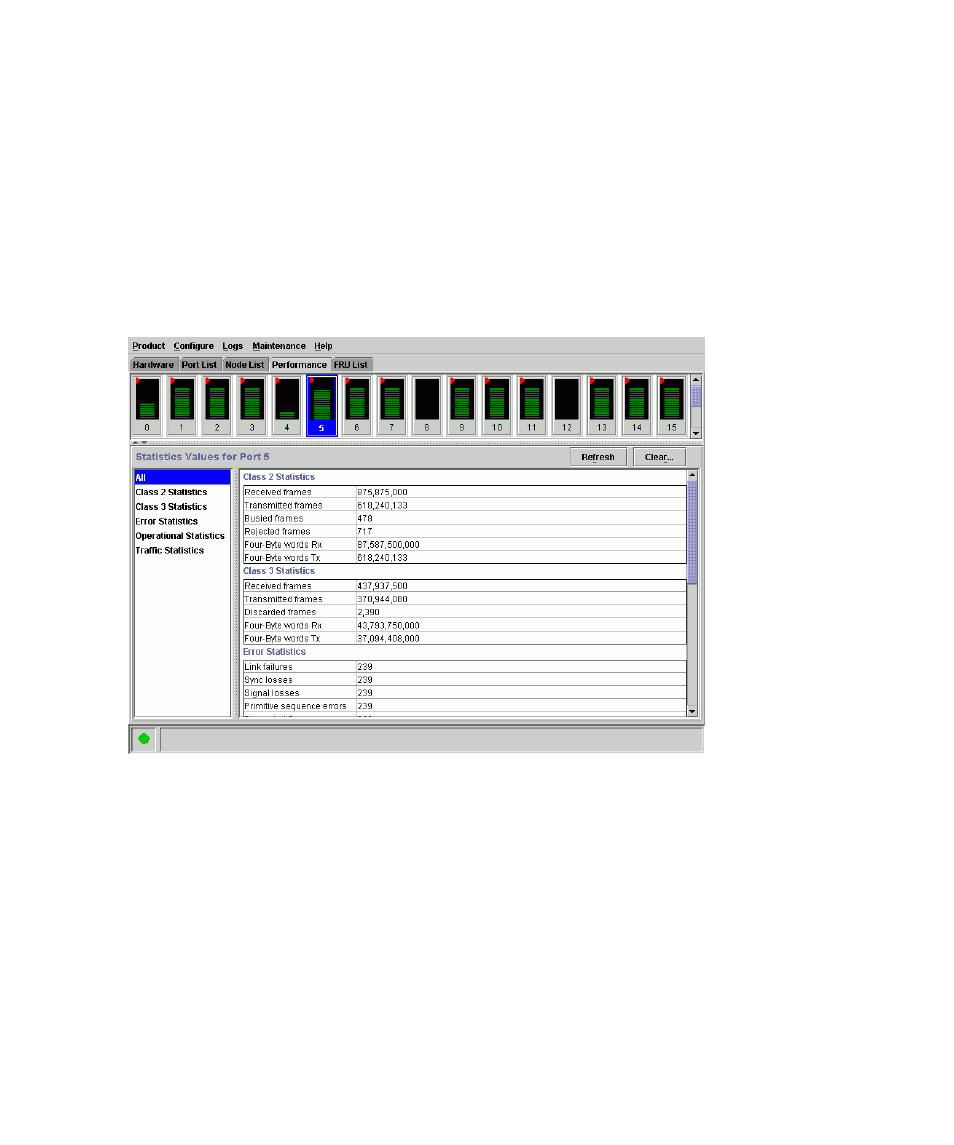

Figure 7

Performance view (Edge Switch 2/32)

Each bar graph also shows the percentage link utilization for the port. A red arrow marks the

highest utilization level reached since the Performance view was opened. If the system detects

activity on a port, it represents minimal activity with at least one bar.
