3.2 Initial Setting
66
3.2 Initial Setting
The operation mode is to be set using Gateway Parameter Setting Tool (Ver. 1.2.0.0 or later).
Registration of positions and setting of parameters are to be conducted on RC PC
Software (Note1) .
Note1: See the instruction manual of the PC software for the applicable version.
Shown below is the process for the setup. Follow the instruction to conduct the setting properly.
(Preparation) Install RC PC Software and Gateway Parameter Setting. For Gateway
Parameter Setting Tool, install the file stored in the CD-ROM for PC software, or
download from our website, intelligentactuator.com.
[Refer to the instruction manual of the PC software for the details of the PC
software.]
Make sure the system I/O connector wires and operation mode setting switch are in MANU
condition when having the setting done.
[Step 1] Join the PC and SIO connector of MSCON with using the cable enclosed in RC PC
Software, and start up RC PC Software. Establish the setting in Parameter No. 25 PIO
Pattern. [Refer to 3.1.1 Selectable Operation Patterns.]
Operation Pattern PIO Pattern Setting
Types other than Remote I/O Mode 8
Remote I/O Mode 0, 1, 2, 4, 5 (select number referring to
Section 3.4.10)

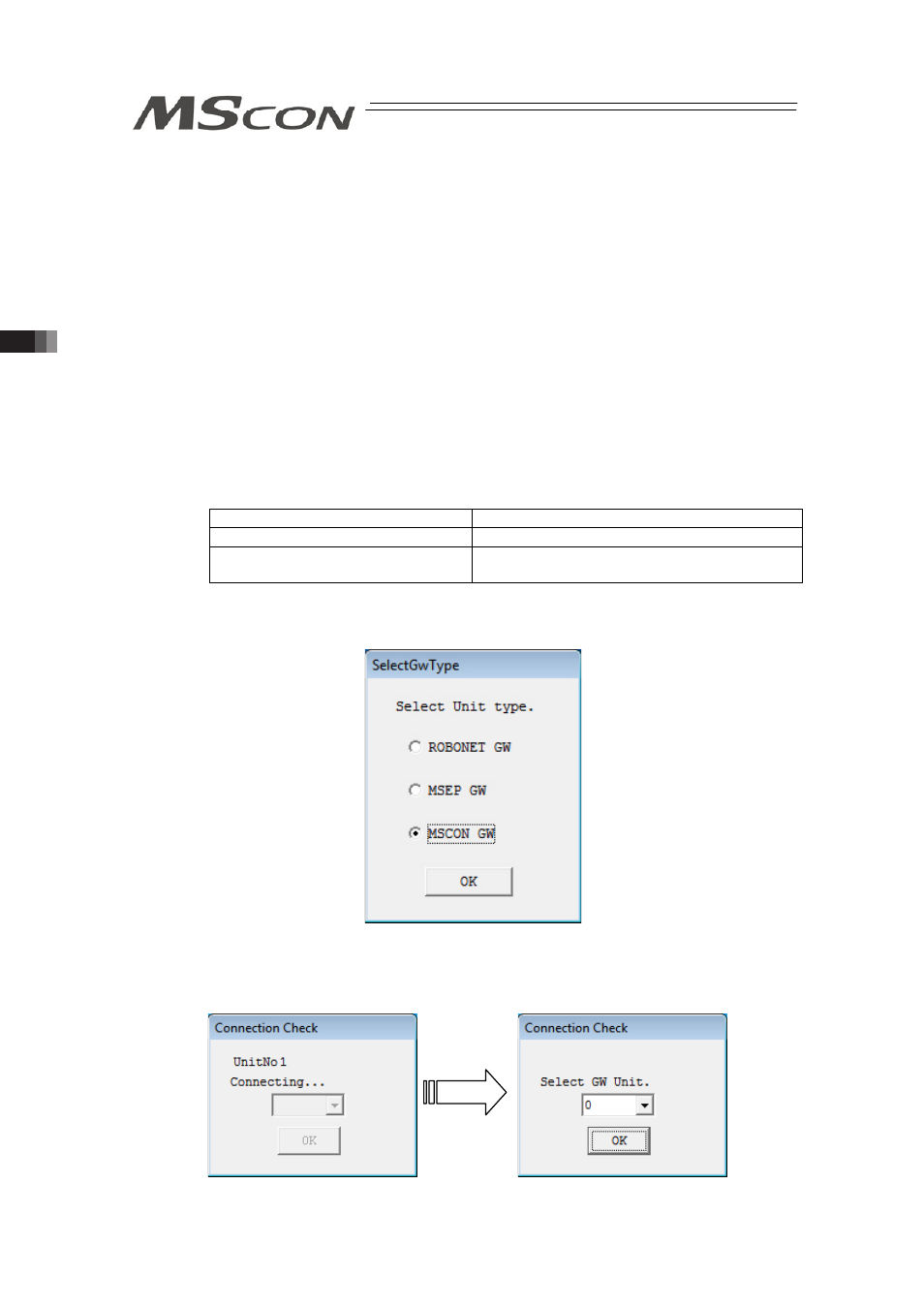

[Step 2] Close RC PC Software and open Gateway Parameter Setting Tool.
The following window appears. Select “MSCON” GW and click OK.
[Step 3] Once MSCON is detected the detected unit numbers become available to select. Select
the unit number to be connected and click the OK button.
MSCON being detected Select the unit number to be connected
