3.9
About Gateway Parameter Setting
Tool
223

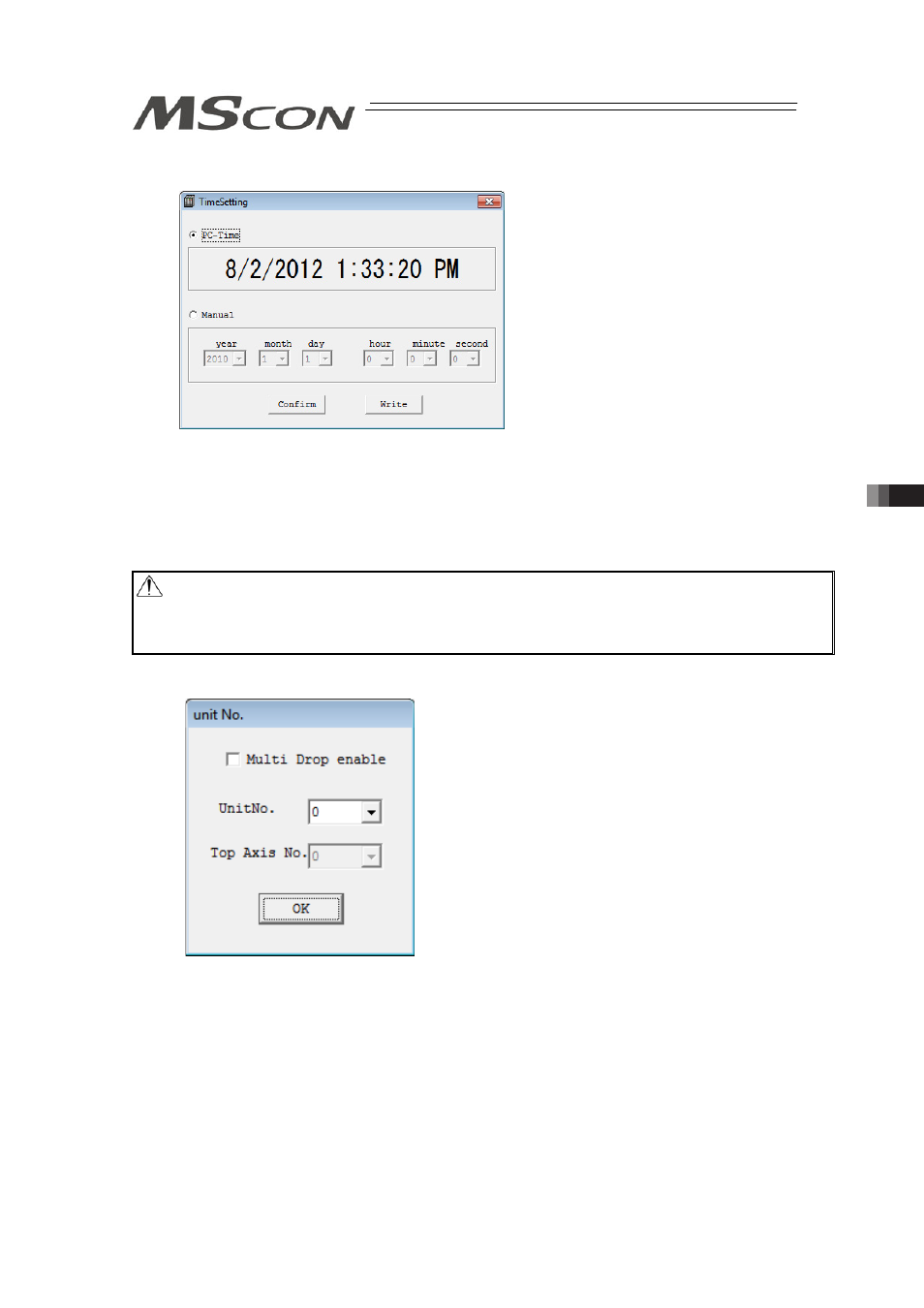

4) Time setting
By selecting Time on PC, the current time on the PC is acquired and set to MSCON. If Set
Manually is selected, desired time set in the clock edit in the window can be set in MSCON.
Click “Write”, and the time setting is transferred to MSCON and the data is written in.
Clicking on the Confirm button and the clock data currently retained in MSCON can be read
and displayed.
5) Unit Number Setting
This setting is to be conducted when 2 units of MSCON are to be connected to the PC software
at the same time.
(It is not necessary to have this setting done for 1 unit of MSCON.)
x Multi Drop enable : Tick in the box if the setting in this window is to be activated.
x Unit No. : Set the unit number of MSCON.
x Top Axis No. : Set the top axis number of MSCON composition axes.
Caution: The clock (calendar) function in MSCON can be retained for approximately 10 days
(reference) after the power to MSCON is turned OFF.
Once the clock data is lost, the time passed since the power is turned back on as
2000/1/1 0:00:00 is displayed as the current time.
