IAI America MSCON - Manual (Page 252)

Chapter 6
Absolute Reset and
Absolute Battery
244
Note 3: BALM and ALM are the signals of active low in Remote I/O Mode, and active high in
other modes. There is no BALM Signal in Positioner Mode 3.

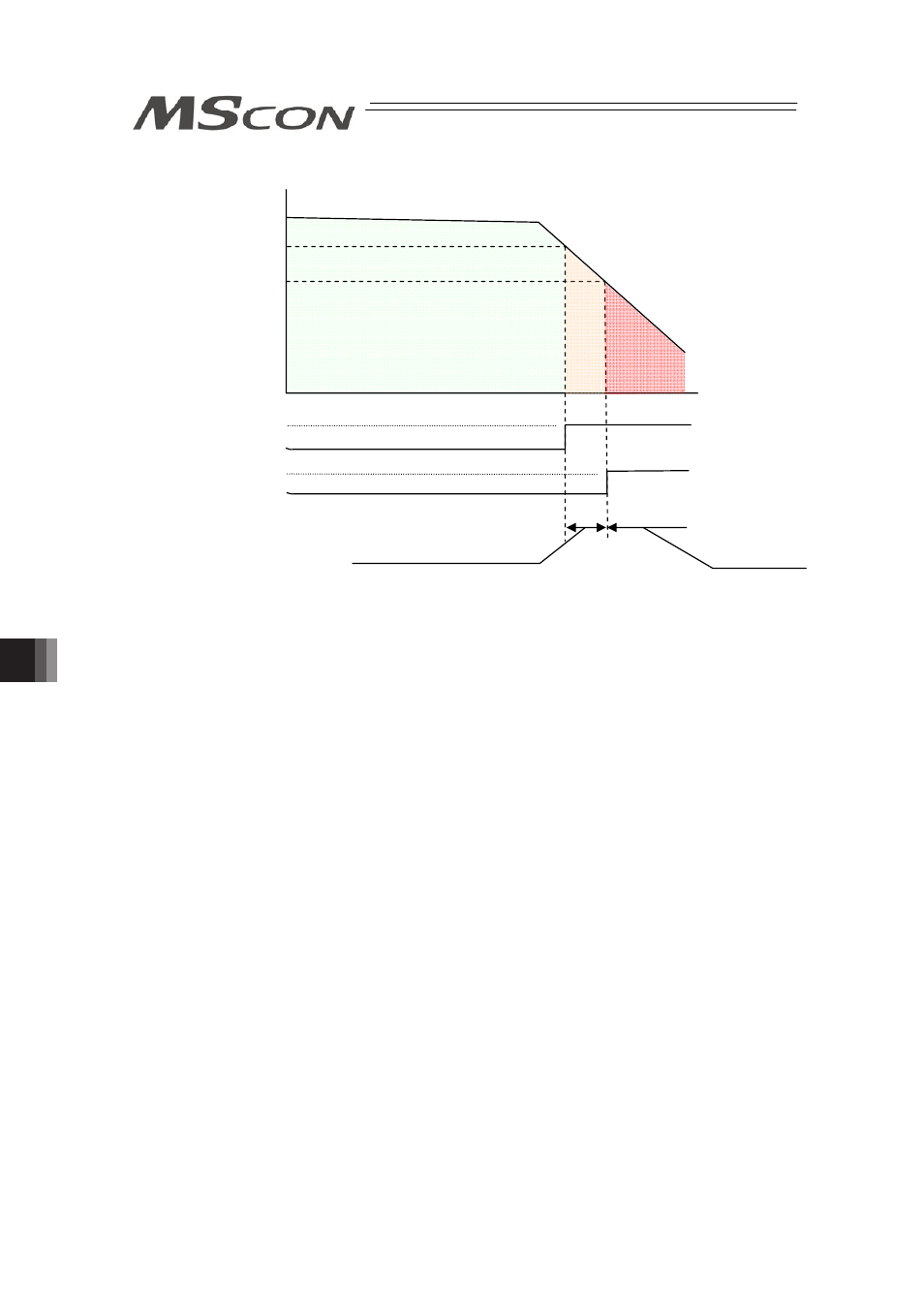

Normal
3.6V
3.1V
2.5V
A
la
rm
S
ig
na
l
Output
Alarm
occurred
Absolute reset not required
Battery voltage
ALM OFF
Absolute reset
required
ON
OFF
BALM signal (Note 3)
(MSCONĺPLC)
ALM signal (Note 3)
(MSCONĺPLC)
ON
OFF
