Chapter 2 Wiring
45

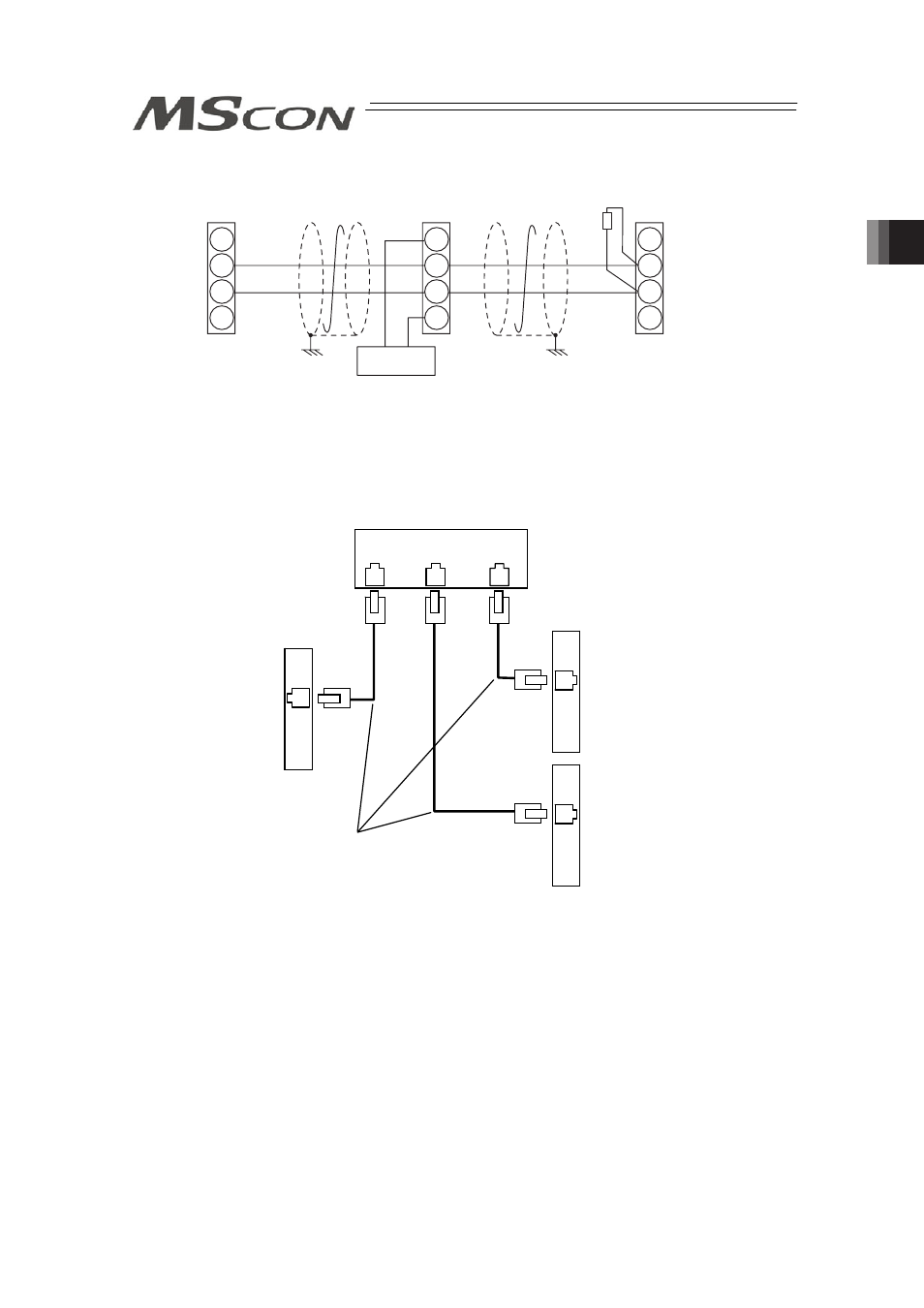

4) CompoNet Type
BS+
BDL
BDH
BS-
BS+
BDL
BDH
BS-
BS+
BDL
BDH
BS-
Master Unit
Slave Device
Terminal Resistance
121Ω
MSCON
CompoNet Type
Connect the terminal
resistor if the unit is
placed at the end
of the network.
24V
Power Supply
Supply power separately to the slave devices
that requires the communication power supply.
It is not necessary to supply communication power
to MSCON, however, there is no problem even if
communication power is supplied.
5) EtherNet/IP Type
Master Unit
Switching Hub
Slave Device
EtherNet Straight Cable
Category 5e or more
Double shielded cable braided with aluminum
foil recommended
MSCON
EtherNet/IP Type
