Metrohm IC Net 2.3 - Manual (Page 246)

6 Devices
IC Net 2.3 236
Alias Define the alias name which appears in the
rest of the driver.
Default:
Dosino MSB1…3
Dos port Select Dosino port for dosing.
Entry range:
1, …, 4 , default 1
Fill port Select Dosino port for filling.
Entry range:
1, …, 4 , default 2
Port 1...4 Configure dosino port
Rate, mL/min Dosing rate of the corresponding dosino
port.
Entry range:
0.01 … 160 mL/min (can be
max. the 3.3-fold of the volume of the dos-
ing unit), default
1 mL/min for Port 1, 3 and 4
; 2 mL/min for Port 2
Tube length, mm Length of the tube connected to the corre-
sponding dosino port.
Entry range:
0 … 9999 mm
Tube diameter, mm Diameter of the tube connected to the cor-
responding dosino port.
Entry range:
0.1 … 20 mm
Send parameters to the devices.

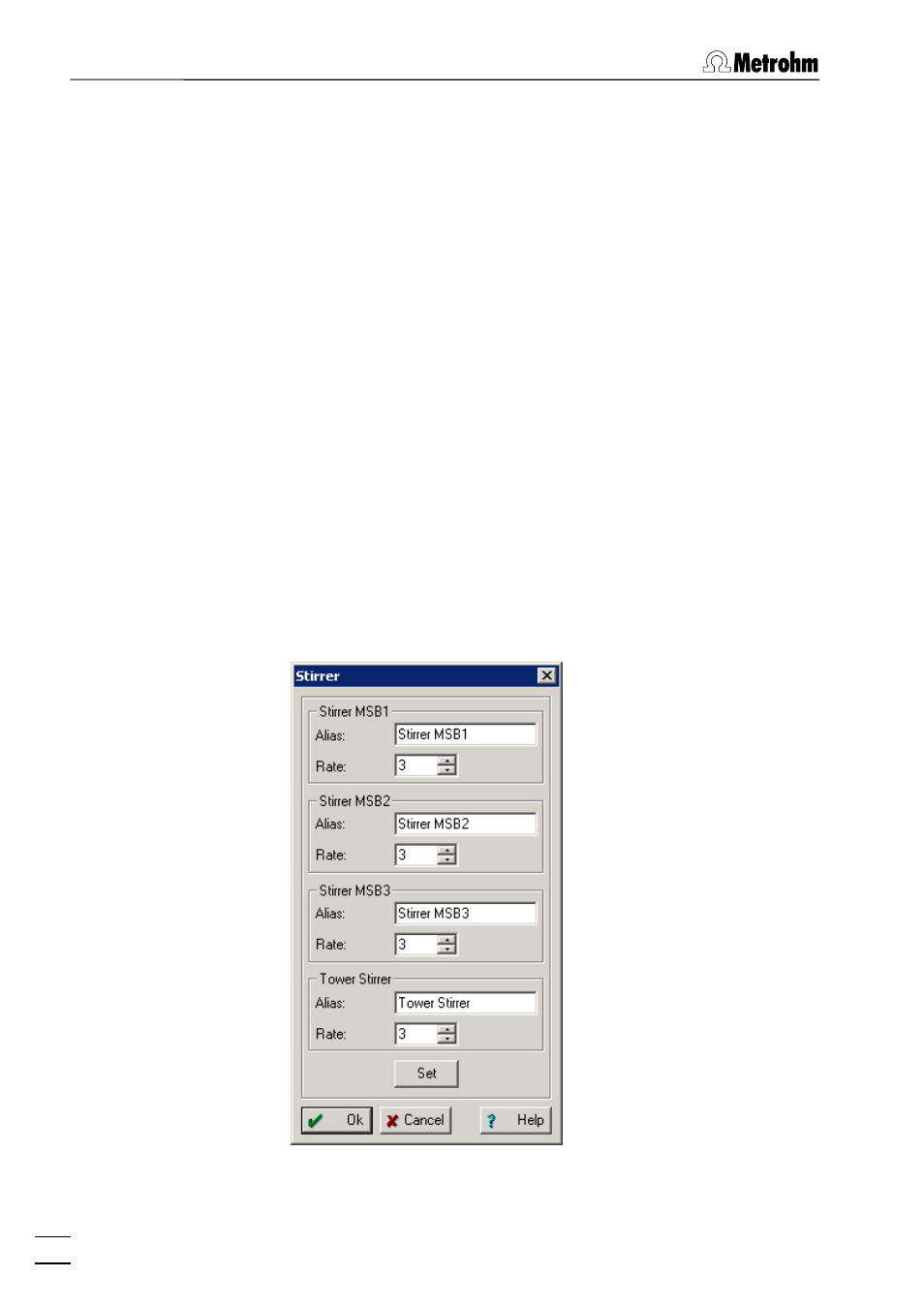

Stirrer
Stirrer MSB1…3, Tower Stirrer
Configure stirrer.
