stalled Separation Center, if two detectors are connected to a 820
IC Separation Center with two injection valves.
If the Separation Center is connected to the 830 IC Interface,
one 6.2115.070 cable for every event line is needed. The number
depends on the type of Separation Center, e.g. for the 820.0X30
IC Separation Center three event lines are necessary to control
the valve (fill, inject) and the suppressor (step).
If the Separation Center is equipped with a column heater
(2.820.02X0), the corresponding bush at the Separation Center
has to be connected to the 830 IC Interface using the
6.2134.040 cable.
The wiring of the column heater is independent on how the
Separation Center is connected.
For detailed information about the 820 IC Separation Center see
819/820 Instructions for Use. Examples for interconnections
with the 820 IC Separation Center, the 819 IC Detector and the
830 IC Interface can be found in the 830 Instructions for Use.

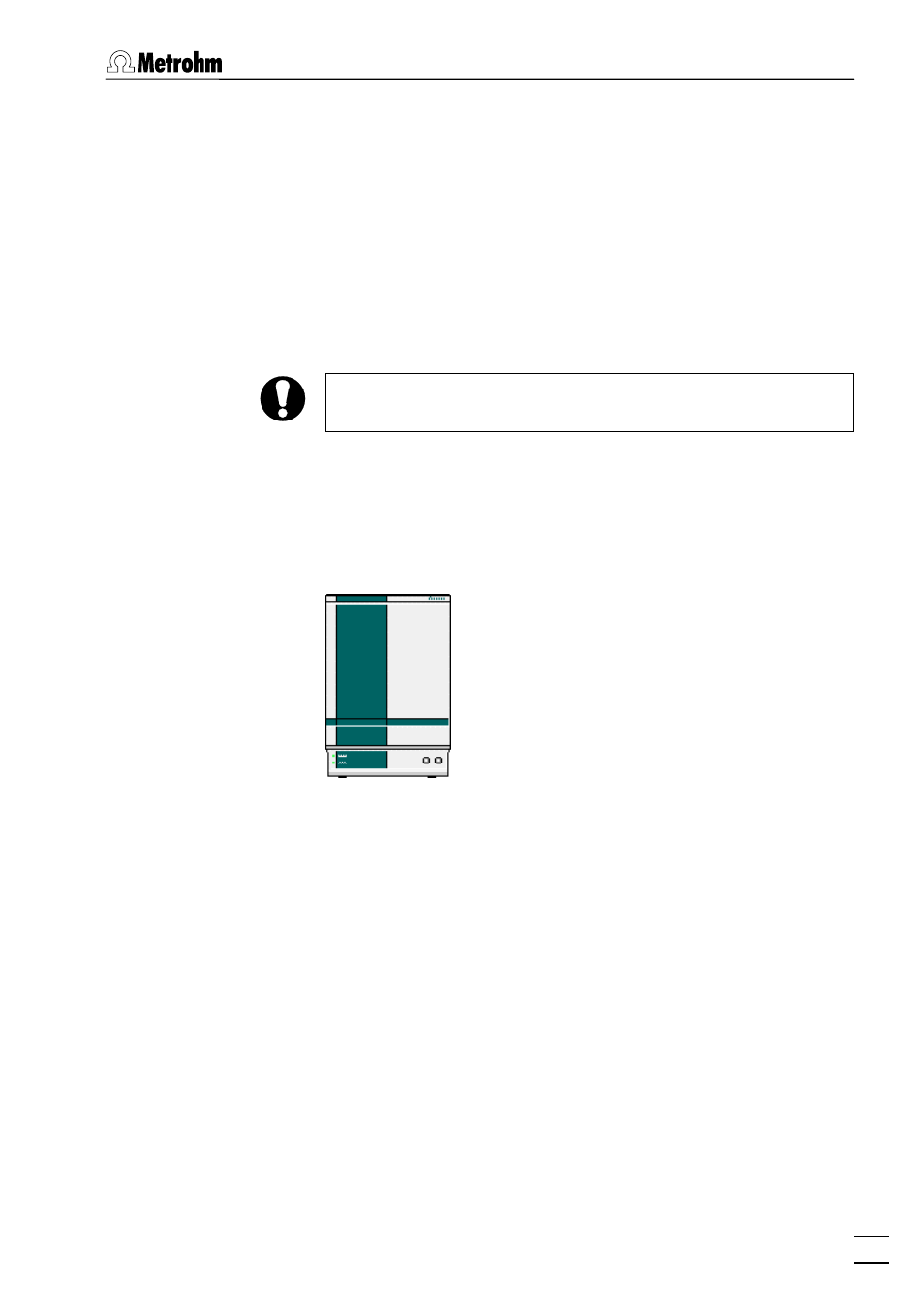

6.9.2 820 IC Separation Center icon
The 820 icon is available in the SYSTEM window if a 820 IC Separa-
tion Center has been installed with the New system wizard or by us-
ing the Setup/New devices/Install new device option of the SYSTEM
window (see section 6.1.2).
If the system is connected and the
820 icon is clicked with the
right mouse button, the following menu appears:
Open Open the 820 IC Separation Center window for parame-
ter settings (this window can also be opened by dou-
ble-clicking the icon).
Unlink Delete the 820 icon from the system.
