6.25 Metrohm Spark Triathlon Autosampler
IC Net 2.3 213
IO-output codes Subtab for the settings to control the hexa-
decimal output at conncetor P3 TIMED
OUTPUTS. Up to eight events
1…8 Code
out can be defined.
Current Displays the actual settings of the corre-
sponding
Code out event.
Method values Field to select the settings for the corre-
sponding
Code out event.
grey background field is inactive
yellow background field is active

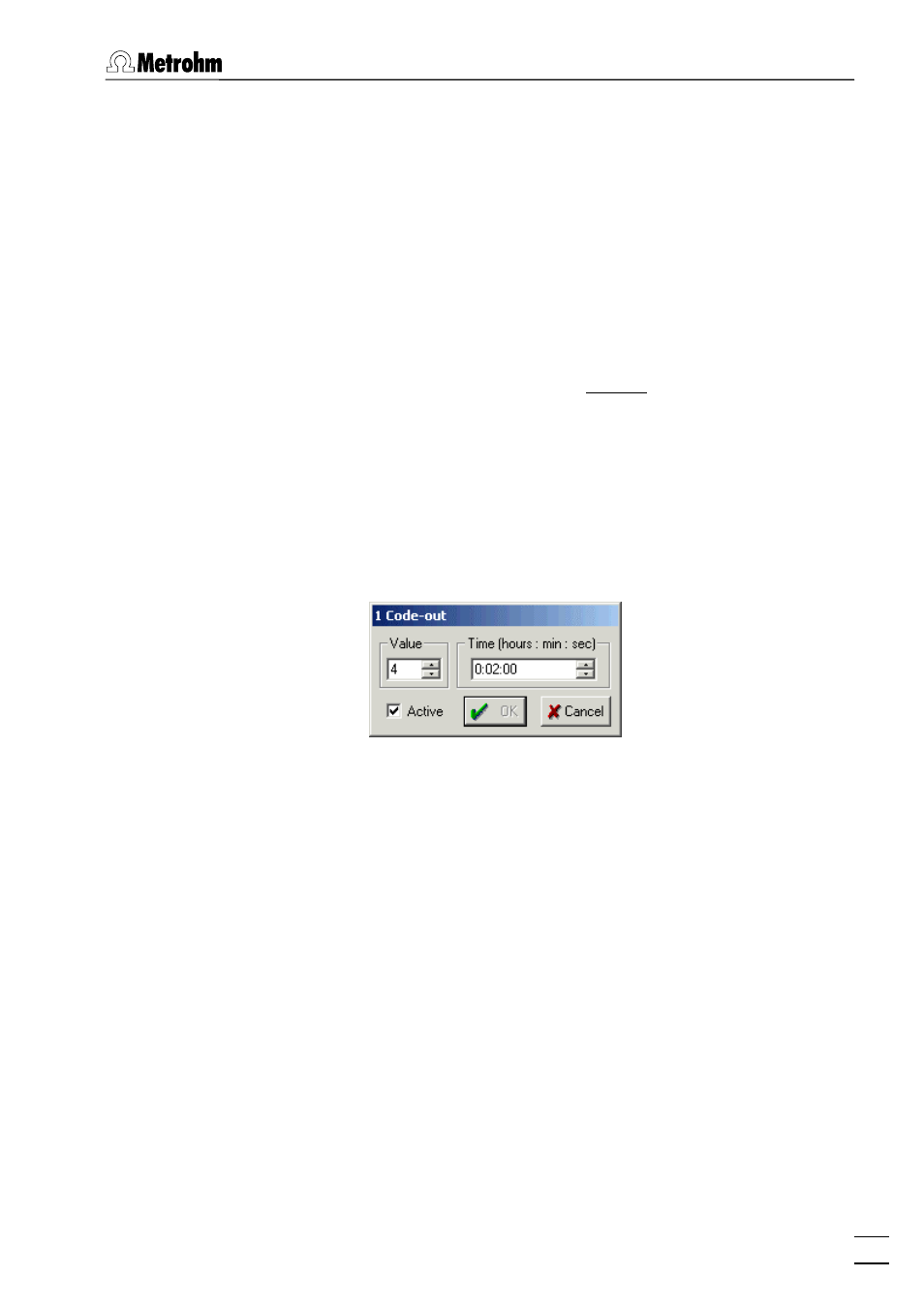

Open the
Code-out window
to enter the val-
ues of the marked Code-out event. The
same operation is performed by double-
clicking the method value field of the Code-
out event.
Apply values of active fields under Method
values to the Timebase program , the set val-
ues are displayed under Current .
The title bar of the Code-out window shows 1..8 Code-out ac-
cording to the event that is edited.
Value Combo box to select the HEX output at the
connector P3 TIMED OUTPUTS of the
Code-out event.
Entry range: 0,…15
Time Combo box to select the time when the
Code-out event is performed.
Entry range: 0:00:00…9:59:59 h:mm:ss
Active Check box to activate the settings made in
the Code-out window.
enabled The method values of the Code-
out event are displayed in a yel-
low field. With
they are ap-
plied to the Timebase method.
disabled The method values of the Code-
out event are displayed in a grey
field. They cannot be applied to
the Timebase method by
.
