6 Devices
IC Net 2.3 130

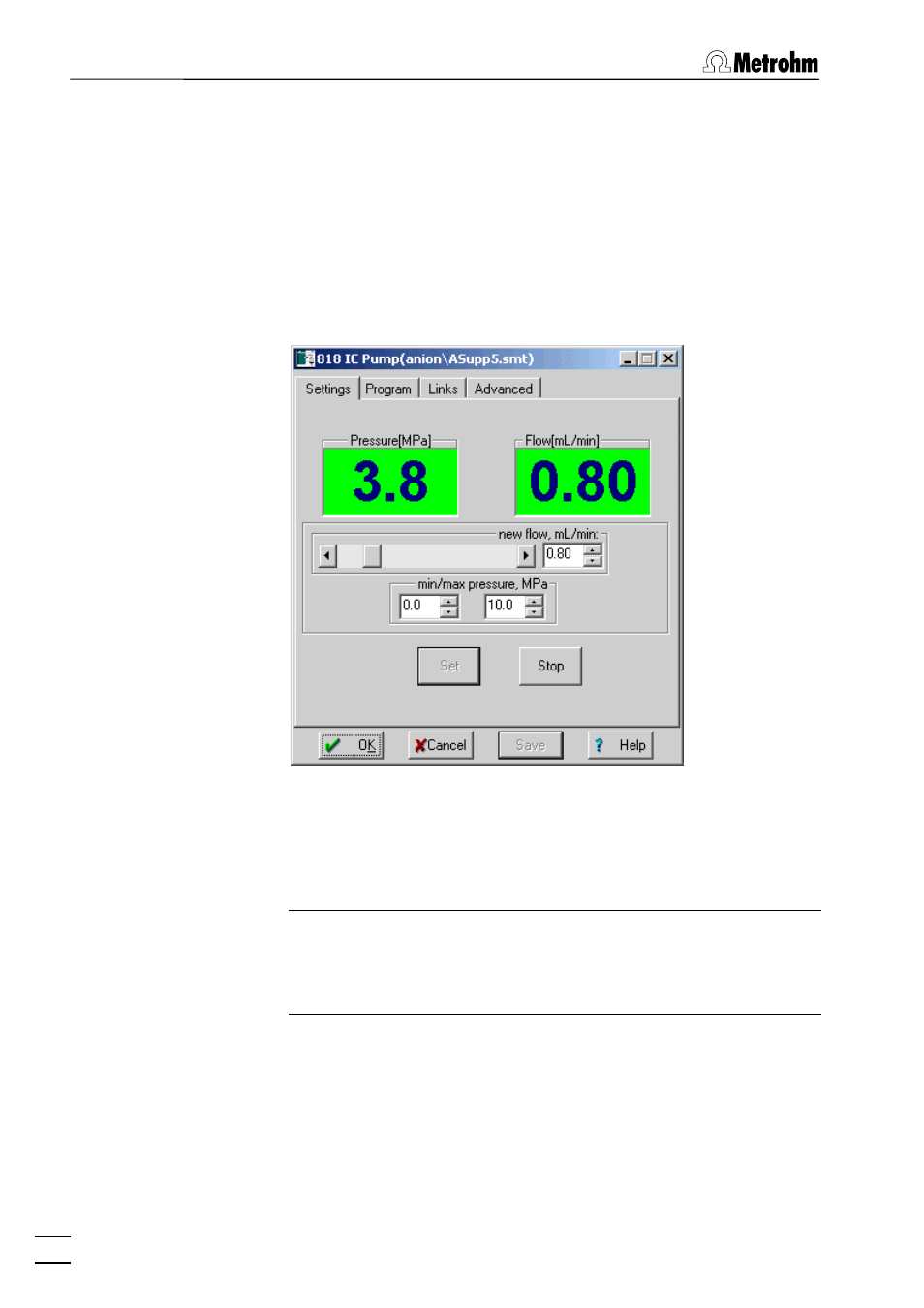

6.11.3 818 IC Pump window
818 icon / Open
The 818 IC Pump window for parameter settings and manual con-
trol is opened by selecting this menu option with the right mouse
button or by double-clicking the
818 icon in the SYSTEM window. It
consists of the three tabs Settings , Program , Links and Advanced .
Settings
The Settings tab of the 818 IC Pump window is only available for a
connected system.
Pressure Live display of current pressure in MPa.
This field is also available for the
WATCH
WINDOW .
Flow Live display of current flow in mL/min. This
field is also available for the
WATCH WIN-
DOW .
New flow A new flow can be set by moving the scroll
bar, by entering a value or by changing the
value using the up and down arrows.
Entry range:
0.01 ... 5.00 mL/min
Min/Max pressure The minimum and maximum pressure limit
for the 818 IC Pump can be set in steps of
0.1 MPa.
Entry range:
0.0 ... 30.0 MPa .
The set maximum limit value should lie be-
tween 5 to 10 MPa above the particular
operating pressure or the maximum admis-
sible operating pressure of the column
