Cross Cutter
Installing and starting up the "CrossCutter" prepared solution
Prepared Solution Servo PLC / ECSxA 1.1 EN 3-148

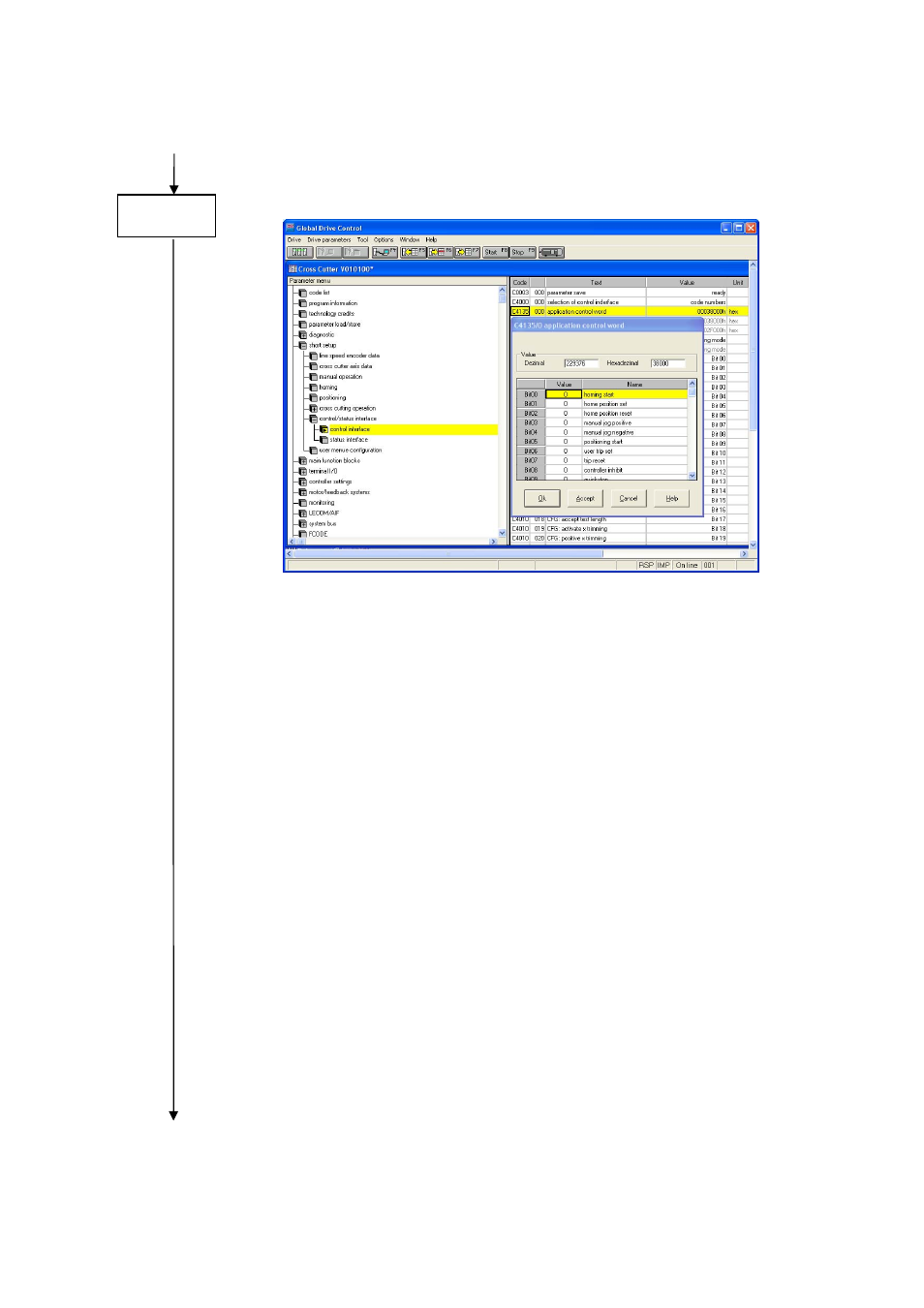

Click code C4135/000 to open the application control word.
Set the following bits in the order indicated below to activate mark-controlled operation:
Bit 15 Accept the newly calculated cutting length
Bit 16
Accept the newly calculated reject length
Bit 17 Accept the newly calculated test length
Bit 21 Activate mark control
Set bit 22 of the application control word (C4135/000) in accordance with whether you wish to use mark-
controlled operation with or without a ramp generator (see Chapter 2.5.9).
Bit 22 0 = Ramp generator deactivated
Bit 22 1 = Ramp generator activated
You now need to set the following bit to start mark-controlled operation:
Bit 14 Start/stop the cross cutter
If the cross cutter is not in the initial position, the cross-cutter drum will execute an additional movement to
reach the initial position (starting position). This process is displayed in code C3505/000 with the message "lock
to cam busy ".
C3505/000 lock to cam busy operation (51)
Once the cross-cutter knife reaches the initial position, or if it is already there, the system will switch to “cam
operation”; it is now coupled to the master value. This state is displayed in code C3505/000 with the message
"cam operation ". If a master value is set at this point via the DFIN signal, the cross cutter will follow it.
C3505/000 cam operation (50)
You can now start the feed drive!
Step 7
