Cross Cutter

Installing and starting up the "CrossCutter" prepared solution

Prepared Solution Servo PLC / ECSxA 1.1 EN

3-132

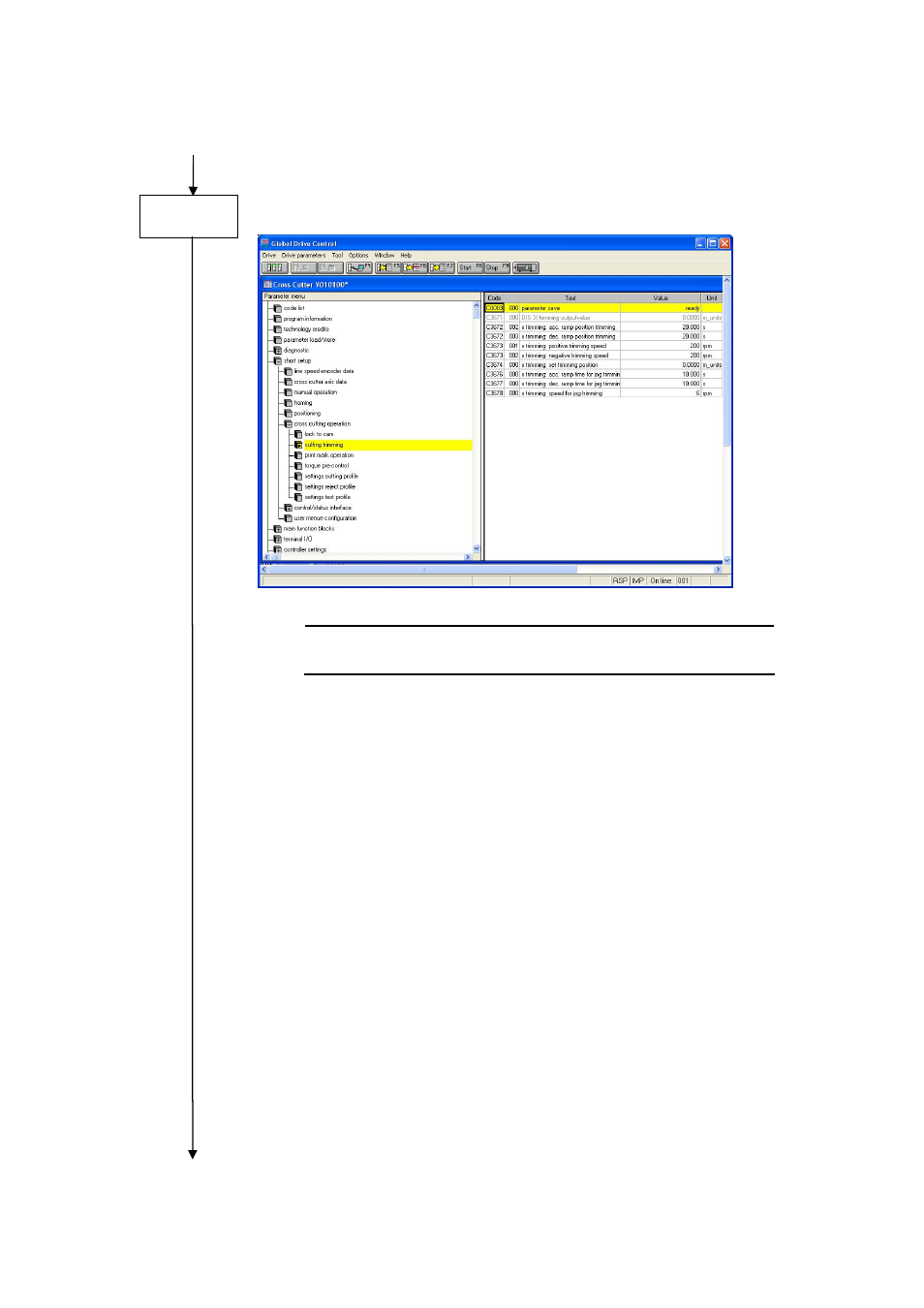

Now make the parameter settings for X trimming
(Short Setup Cross Cutting Operation Cutting Trimming):

TIP!
See Chapter 2.5.11 for more information about X trimming.


Make the following code settings:

C3672/002

X trimming: Acceleration ramp position trimming

C3672/003

X trimming: Deceleration ramp position trimming

C3673/001 X trimming: Positive positioning speed

C3673/002 X trimming: Negative positioning speed

C3674/000 X trimming: Selection of trimming position
C3676/000 X trimming: Acceleration ramp time inching trimming
C3677/000 X trimming: Deceleration ramp time inching trimming
C3678/000 X trimming: Inching speed
