Cross Cutter
Installing and starting up the "CrossCutter" prepared solution
Prepared Solution Servo PLC / ECSxA 1.1 EN 3-116

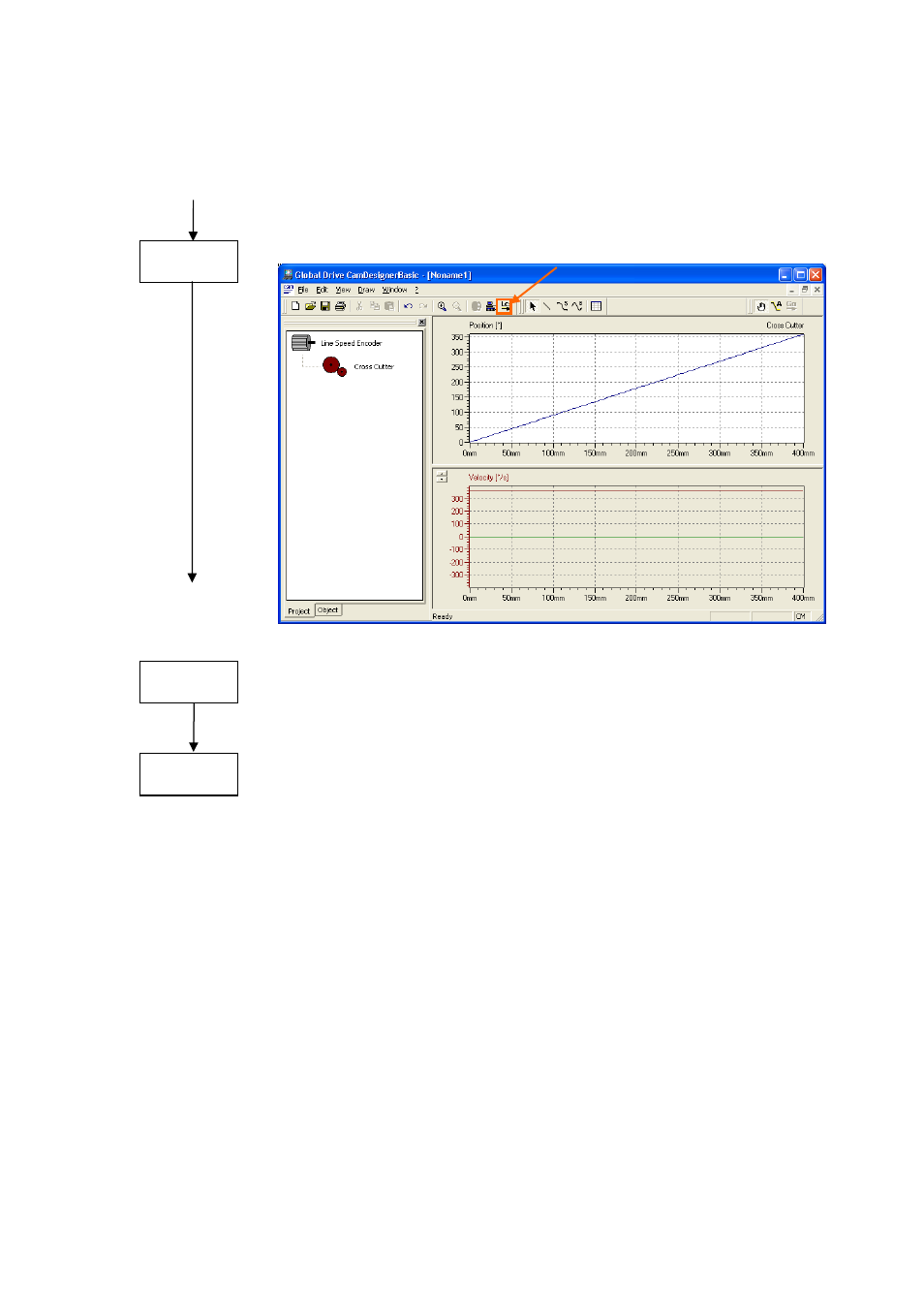

Click LCx to write the table of values to the LC9 file for the next motion profile also:
Repeat Steps 9 to 11 until you have created all 10 motion profiles.
Exit CamDesigner.
The 10 motion profiles are used as follows in the prepared solution:
• Asynchronous cross-cutter mode uses motion profile 0.
• Motion profiles 1 and 2 are used for Continuous cutting mode.
• Motion profiles 3 and 4 are used for Reject operation mode.
• Motion profiles 5 and 6 are used for Test operation mode.
• Motion profiles 7 and 8 are used to start and stop the cross cutter.
• Motion profile 9 is reserved for future expansions.
