Cross Cutter
Installing and starting up the "CrossCutter" prepared solution
Prepared Solution Servo PLC / ECSxA 1.1 EN 3-109

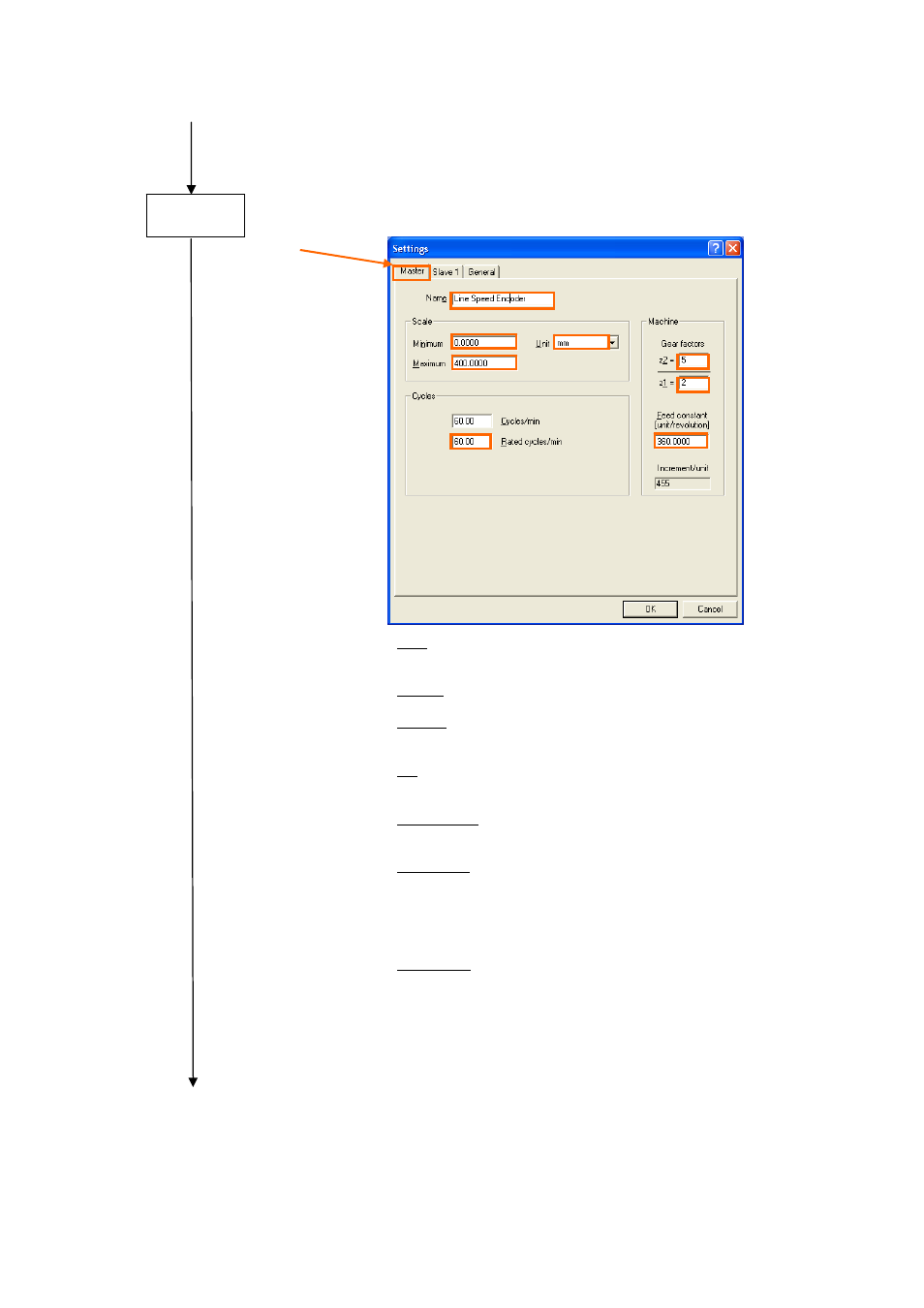

The Project Settings dialog box will appear. Click the Master tab (master value source parameters):
Name: Name of the master value axis (in the example: "Line Speed
Encoder")
Minimum:
Must always be set to 0.0000[mm]
Maximum:
Entry indicating the cutting circle circumference of the knife drum
on the rotary cross cutter (in the example: 400.0000[mm])
Unit:
Unit in which the cutting length is to be scaled
(in the example: 1[m_unit] = 1[mm])
Gearbox factors:
Entry indicating the gearbox factors of the master signal encoder
(in the example: z
2
: z
1
= 5 : 2)
Feed constant:
Entry indicating the feed constant of the
master signal encoder = path feed
in the master signal with revolution of the master value at the
gearbox output end (in the example: π . 127.3239[mm] =
400.0000[mm])
Rated quantity:
In this case, entry indicating the maximum number of cycles in
[rpm] at which the rotary cross cutter is to run. Initially, this entry
refers solely to the synchronous cutting length.
Step 3
