Cross Cutter

Features of the "Cross Cutter" prepared solution

Prepared Solution Servo PLC / ECSxA 1.1 EN

2-2

2.2

Structure and functional principle

2.2.1

Typical structure of a cross-cutter application

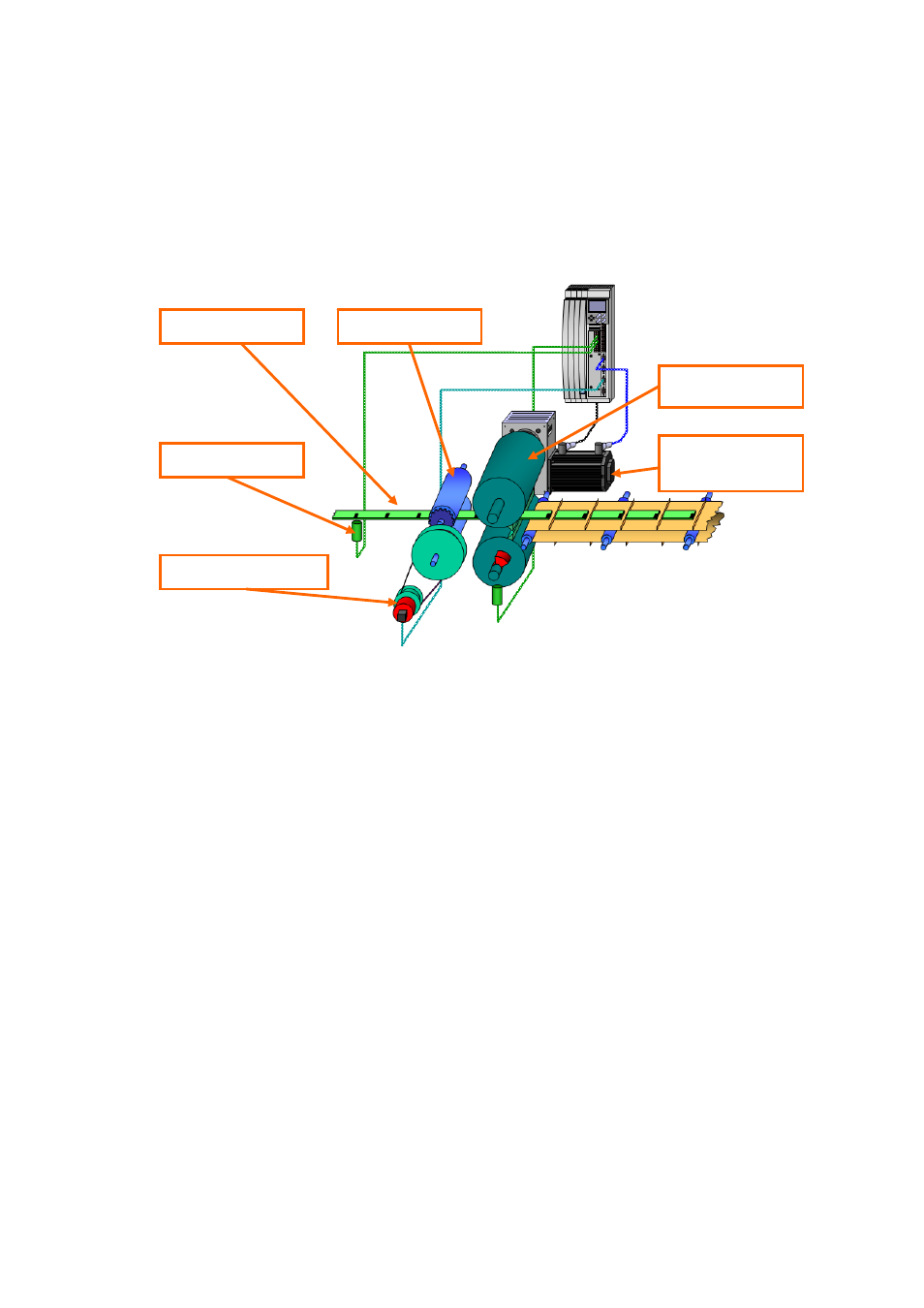

Figure 1: Typical structure of a cross-cutter application

The prepared solution is able to support applications in which continuous material is cut to
length in defined cutting lengths. A fundamental distinction is drawn between asynchronous and
synchronous cross cutters. In the prepared solution, the asynchronous cross cutter can be used
for cutting lengths shorter than or equivalent to the cutting circle circumference. The
synchronous cross cutter can be used for all cutting lengths shorter than or longer than the
cutting circle circumference.

Continuous

Mark sensor

Feed roll

Master value rotary

Drive cross
cutter

Knife drum
