Installing and starting up the "CrossCutter" prepared solution

Prepared Solution Servo PLC / ECSxA 1.1 EN

3-140

You now need to switch to the application control word (Short Setup Control/Status Interface Control
Interface):

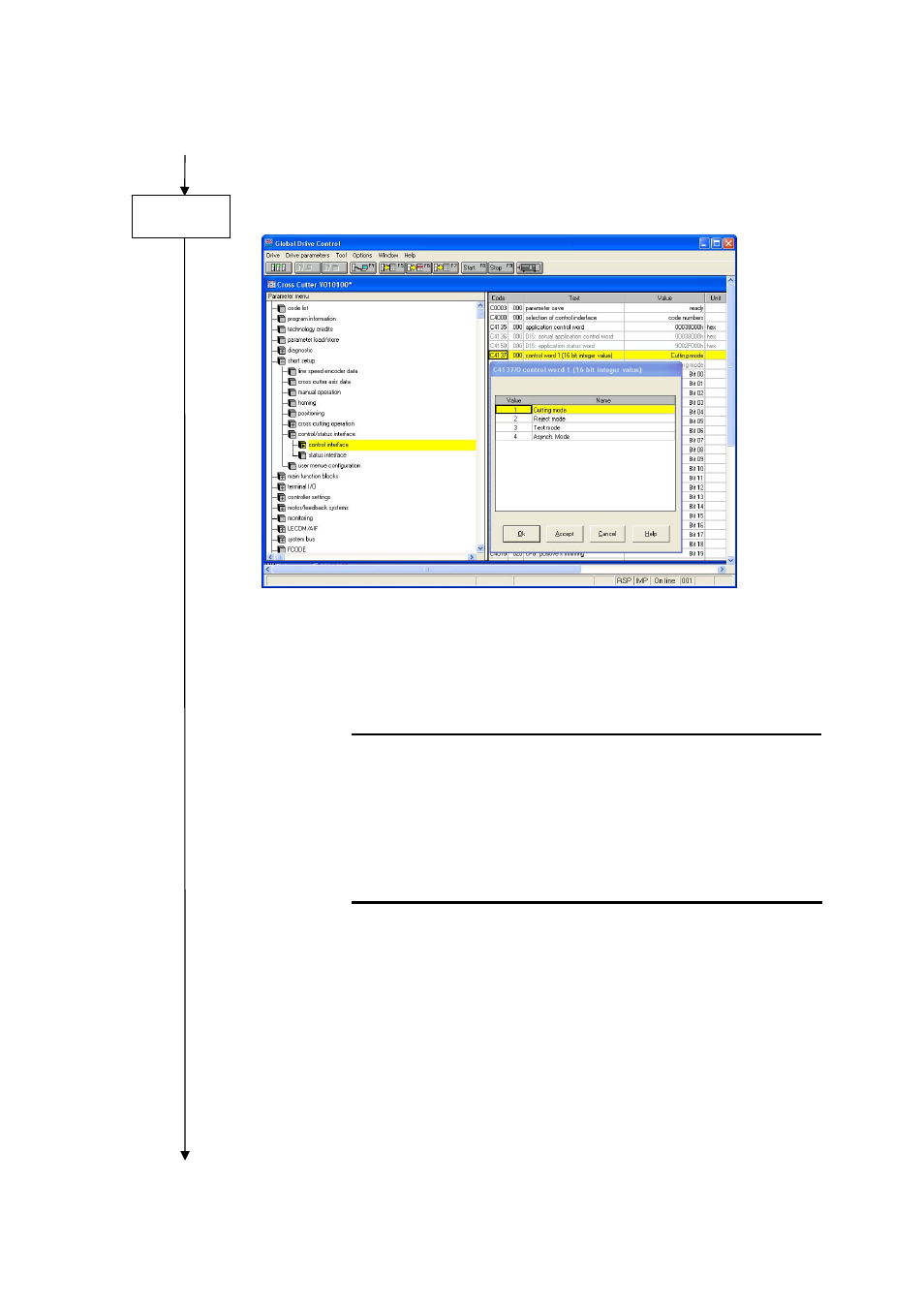

Select the operating mode you wish to use in code C4137/000:

1 Cutting

mode

2 Reject mode
3 Test

mode

4 Asynchr.

mode

TIP!

•

You can switch between operating modes 1 to 3 even during cross-cutter
operation.

•

You cannot switch from one of operating modes 1 to 3 to operating mode 4
during operation. In order to switch modes, the system must be in standby
(C3505/000=Standby(10)).

•

You cannot switch from operating mode 4 to one of operating modes 1 to 3
during operation. In order to switch modes, the system must be in standby
(C3505/000=Standby(10)).

Step 6
