Chapter 8: Port Mirroring
Section I: Basic Operations 88

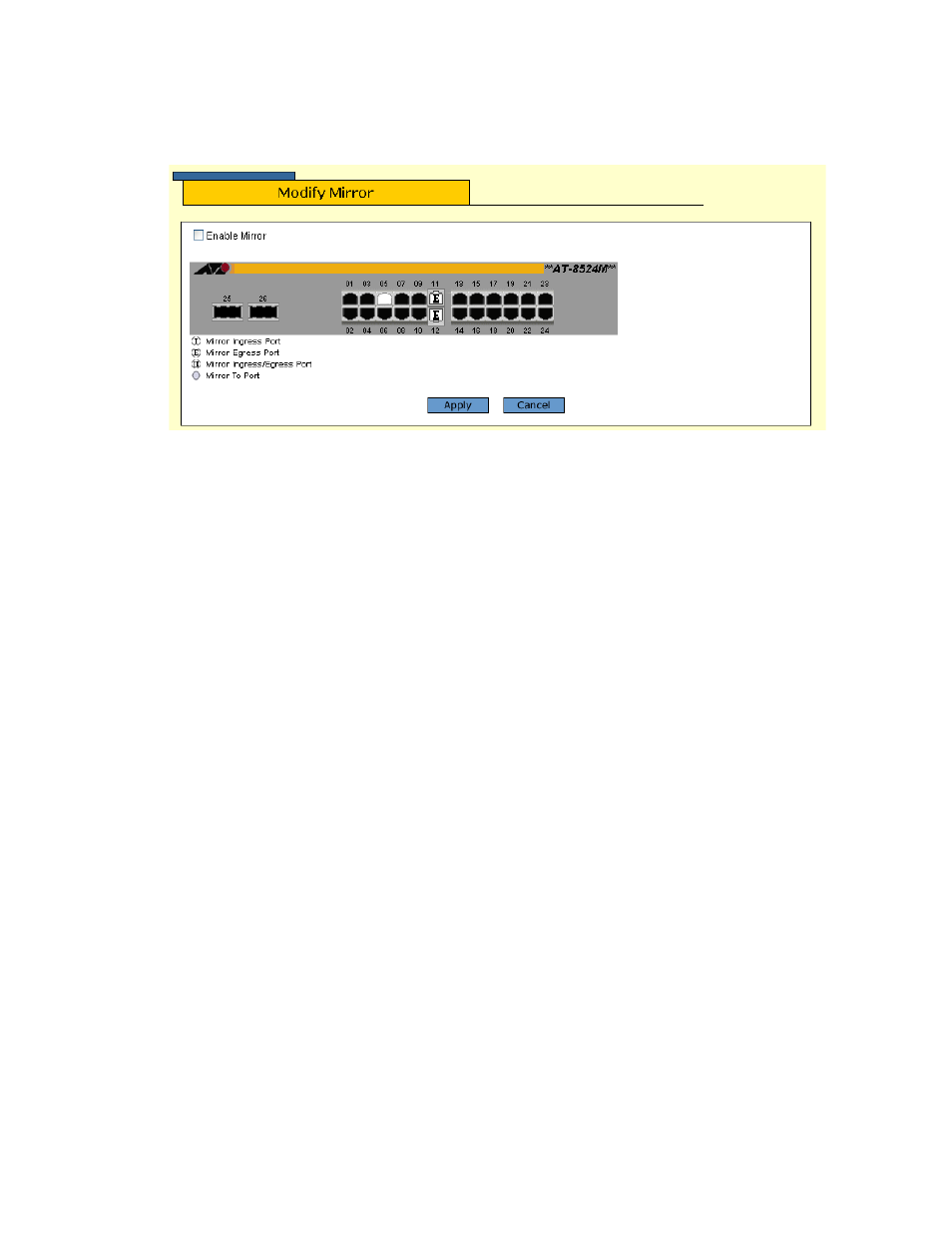

Figure 26 shows an example of the Modify Mirror page configured
for a port mirror. The egress traffic on Ports 11 and 12 is mirrored
to the destination Port 5.
Figure 26 Example of a Modify Mirror Page
6. After selecting the destination and source ports, click the Enable
Mirror check box.
7. Click Apply.
The port mirror is now active on the switch. You can connect a
data analyzer to the destination port to monitor the traffic on the
source ports.
8. To permanently save the change, use the Save Changes button in the
General tab. For directions, refer to Saving Your Parameter Changes
on page 23.
