Chapter 19: SNMPv3 Protocol
Section III: SNMPv3 Operations 216
Modifying a
Notify Table
Entry
To modify an entry in the SNMPv3 Notify Table, perform the following
procedure.
1. From the Home Page, select Configuration.
2. Select the Mgmt Protocols menu selection.
3. Select the SNMP Tab.
The SNMP Tab is shown in Figure 58 on page 186.
4. In the SNMPv3 section of the page, click the circle next to Configure
Notify Table. Then click Configure at the bottom of the page.
The SNMPv3 Notify Table Page is shown in Figure 71 on page 213.
5. Click the circle next to the table entry that you want to change. Then
click Modify.
The Modify SNMPv3 Notify Page is shown in Figure 73

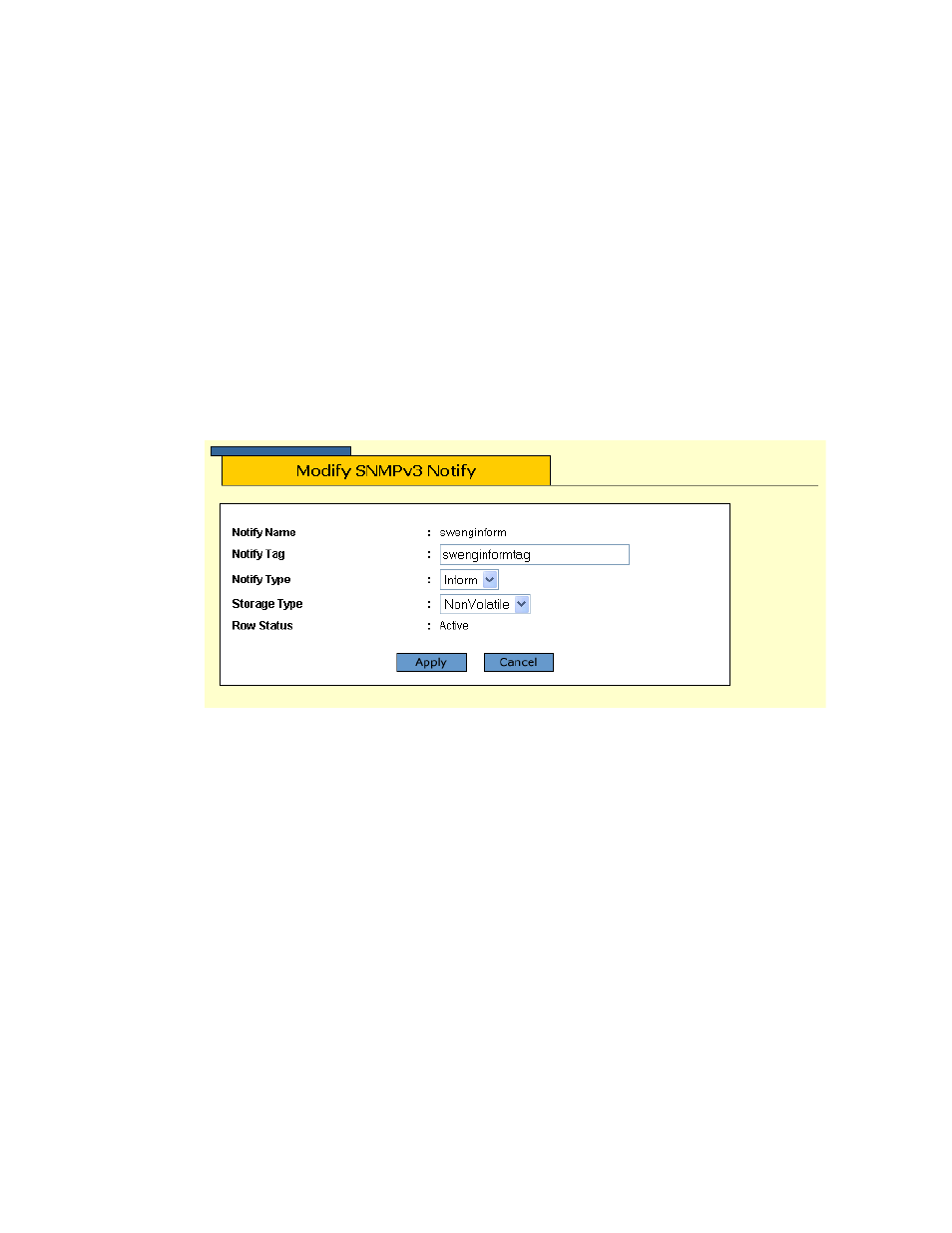

Figure 73 Modify SNMPv3 Notify Page
6. In the Notify Tag field, enter a description name of the Notify Tag.
Enter a name of up to 32 alphanumeric characters.
7. In the Notify Type field, enter one of the following message types:
Trap
Indicates this notify table is used to send traps. With this message
type, the switch does not expects a response from the host.
Inform
Indicates this notify table is used to send inform messages. With
this message type, the switch expects a response from the host.
