AT-S62 Web Browser Interface User’s Guide
Section II: Advanced Operations 149

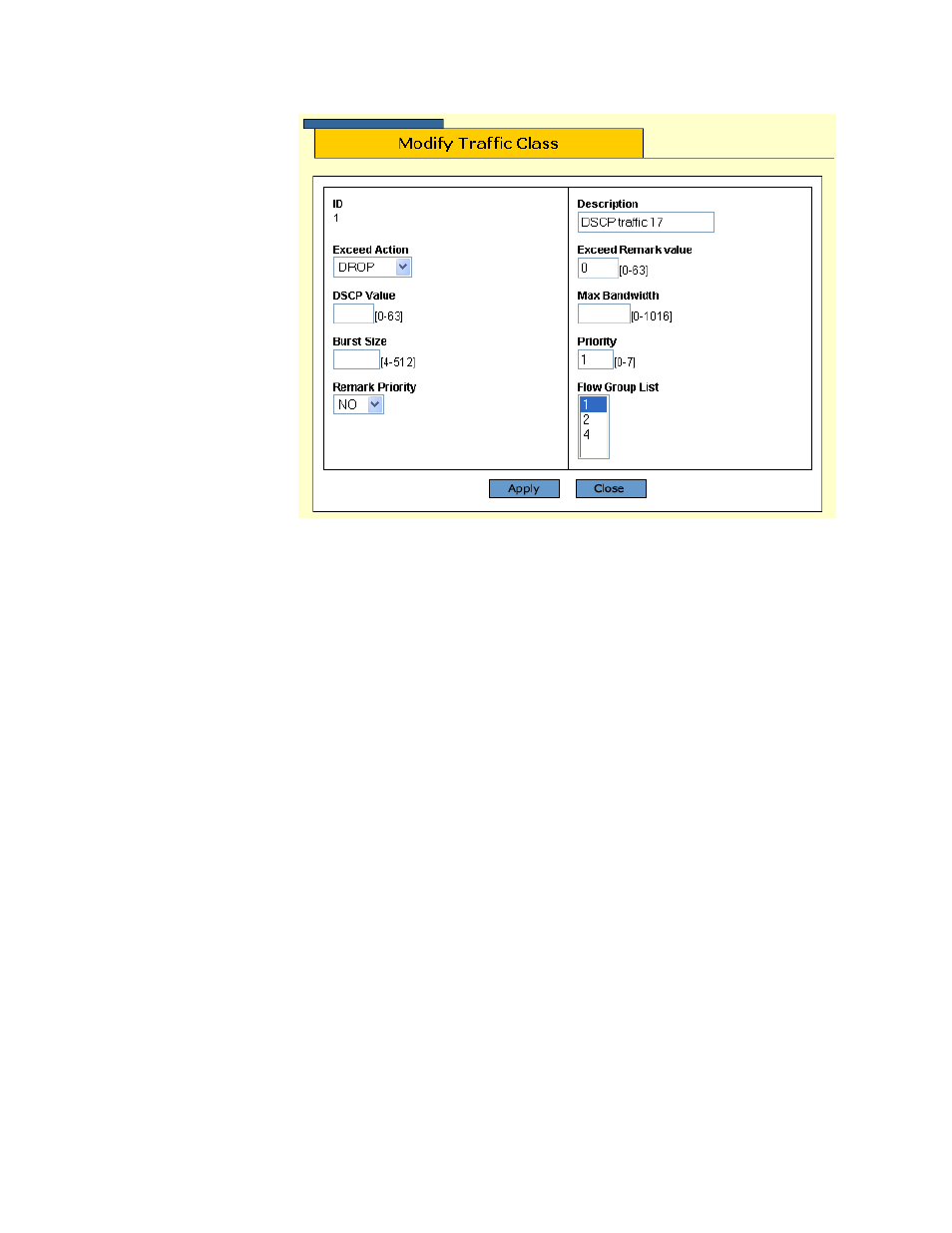

The Modify Traffic Class page is shown in Figure 45.
Figure 45 Modify Traffic Class Page
5. Configure the following parameters as necessary. For descriptions of
the parameters, refer to Creating a Traffic Class on page 144.
6. Click Apply.
The changes are immediately implemented in the traffic class.
7. To permanently save your changes, select the Save Config menu
selection.
Deleting a Traffic
Class
This procedure explains how to delete a traffic class. If the traffic class
you want to delete is already part of a QoS policy assigned to one or
more switch ports, you must first modify the policy by removing the port
assignments before you can delete the traffic class. You can reassign the
ports back to the policy after you have deleted the traffic class.
To delete a traffic class, perform the following procedure:
1. From the Home Page, select Configuration.
2. From the Configuration menu, select the Services option.
3. Select the Traffic Class tab.
The Traffic Class tab is shown in Figure 43 on page 144
4. Select the traffic class you want to delete and click Delete.
The traffic class is deleted from the switch.
