Allied Telesis AT-S62 - Manual (Page 109)

AT-S62 Web Browser Interface User’s Guide
Section II: Advanced Operations 109

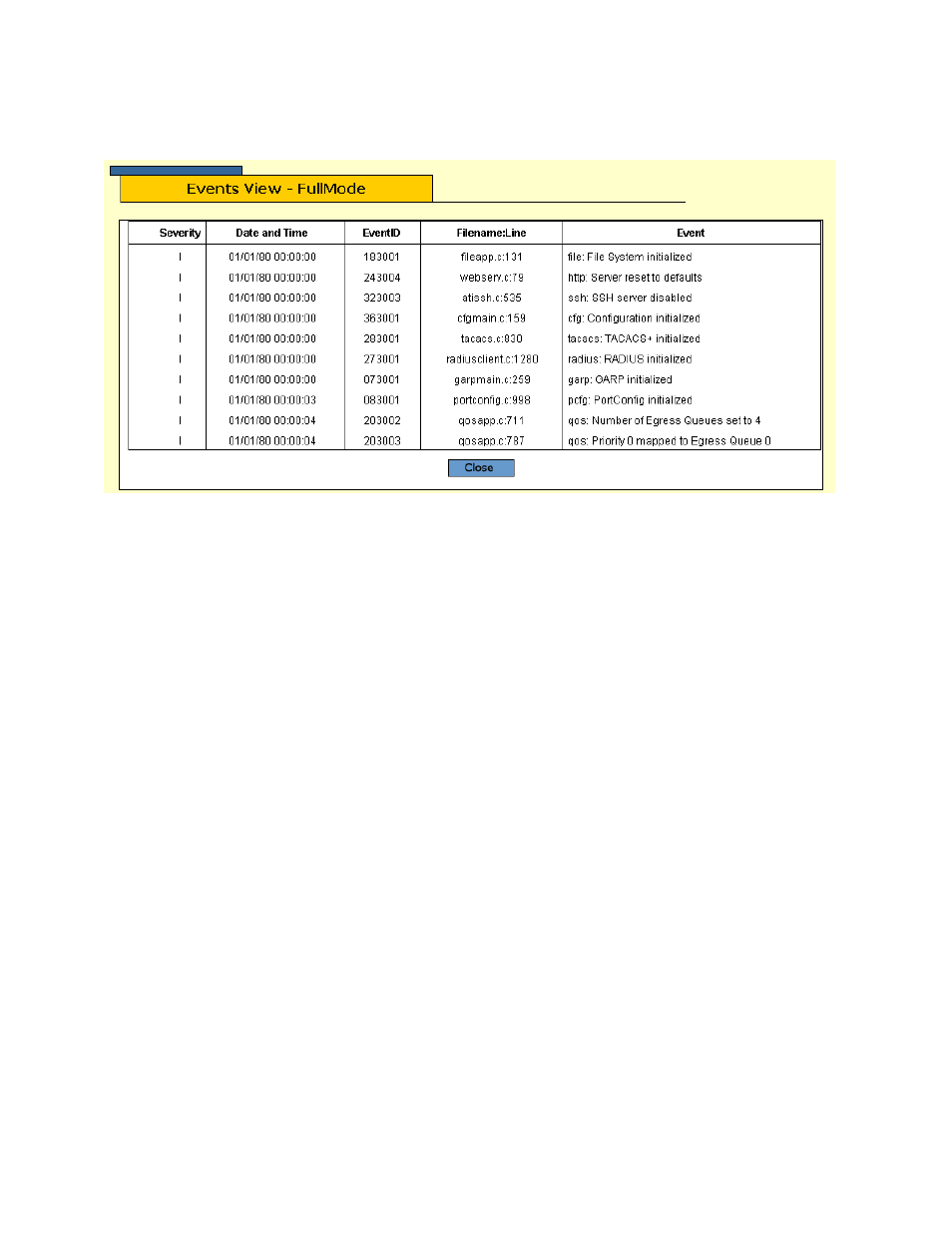

Figure 30 shows an example of the event log in the Full display
mode. The Normal display mode does not include the Filename,
Line Number, and Event ID items.
Figure 30 Event Log Example
The columns in the log are described below:
❑ S (Severity) - The event’s severity. Table 1 on page 106 defines the
different severity levels.
❑ Date/Time - The date and time the event occurred.
❑ Event ID - A unique number that identifies the event. (Displayed
only in the Full display mode.)
❑ Filename:Line - The subpart of the AT-S62 module and the line
number that generated the event. (Displayed only in the Full
display mode.)
❑ Event - The module within the AT-S62 software that generated
the event followed by a brief description of the event. For a list of
the AT-S62 modules, see Table 2 on page 107.
