Allied Telesis AT-S62 - Manual (Page 79)

AT-S62 Web Browser Interface User’s Guide
Section I: Basic Operations 79

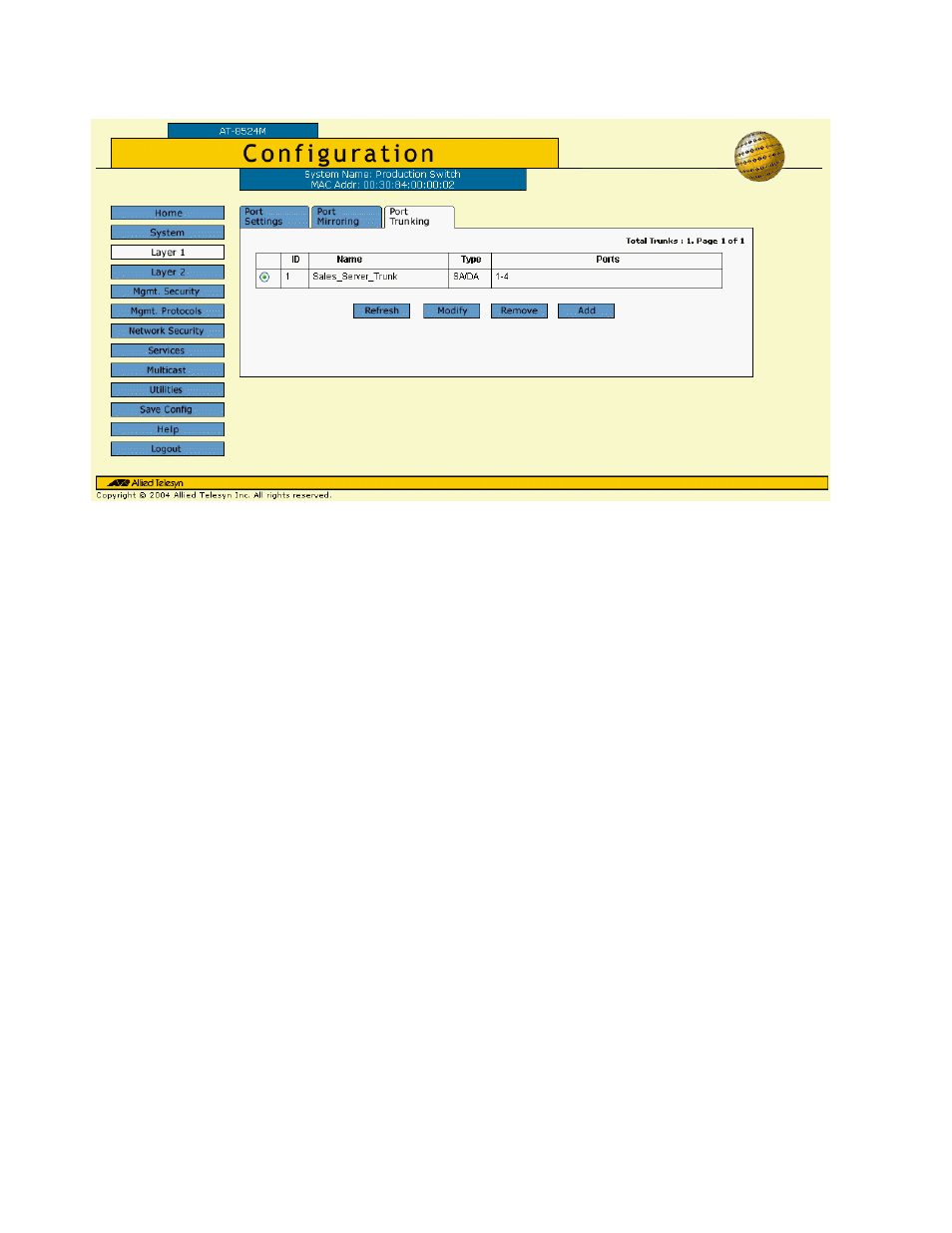

The Port Trunking tab is shown in Figure 21.
Figure 21 Port Trunking Tab
This tab lists the existing trunks. Columns in the tab are defined
below:
ID
The ID number of the trunk.
Name
The name of the trunk.
Type
The load distribution method:
❑ SA - Source MAC address (Layer 2)
❑ DA - Destination MAC address (Layer 2)
❑ SA/DA - Source MAC address /destination MAC address (Layer 2)
❑ SI - Source IP address (Layer 3)
❑ DI - Destination IP address (Layer 3)
❑ SI/DI - Source IP address /destination IP address (Layer 3)
Ports
The ports of the trunk.
4. Click Add.
