Boonton 4500B RF Peak Power Analyzer
Operation 4-64
Table 4-15B. Meas > Auto Meas > Skew > Submenu (pulse)
Menu Item Function
(Type) Selections (SCPI cmd)
CH1 Skew Ref
Pulse To change the reference channel for
(Selection Menu) CH1, CH2 Channel 1 time skew measurements, press
Trig1, Trig2 the menu key. When ―Selection‖ appears
Mem1, Mem2 in all menu box titles, all reference channel
choices will be displayed.
Press the menu key beside the desired
reference for Channel 1. The display will
revert to the Skew Ref display with the
selected reference for Channel 1.
CH2 Skew Ref
Pulse See procedure above.
(Selection Menu) CH1, CH2
Trig1, Trig2
Mem1, Mem2
Trg1 Skew Ref
Pulse See procedure above.
(Selection Menu) CH1, CH2
Trig1, Trig2
Mem1, Mem2
Trg2 Skew Ref
Pulse See procedure above.
(Selection Menu) CH1, CH2
Trig1, Trig2
Mem1, Mem2

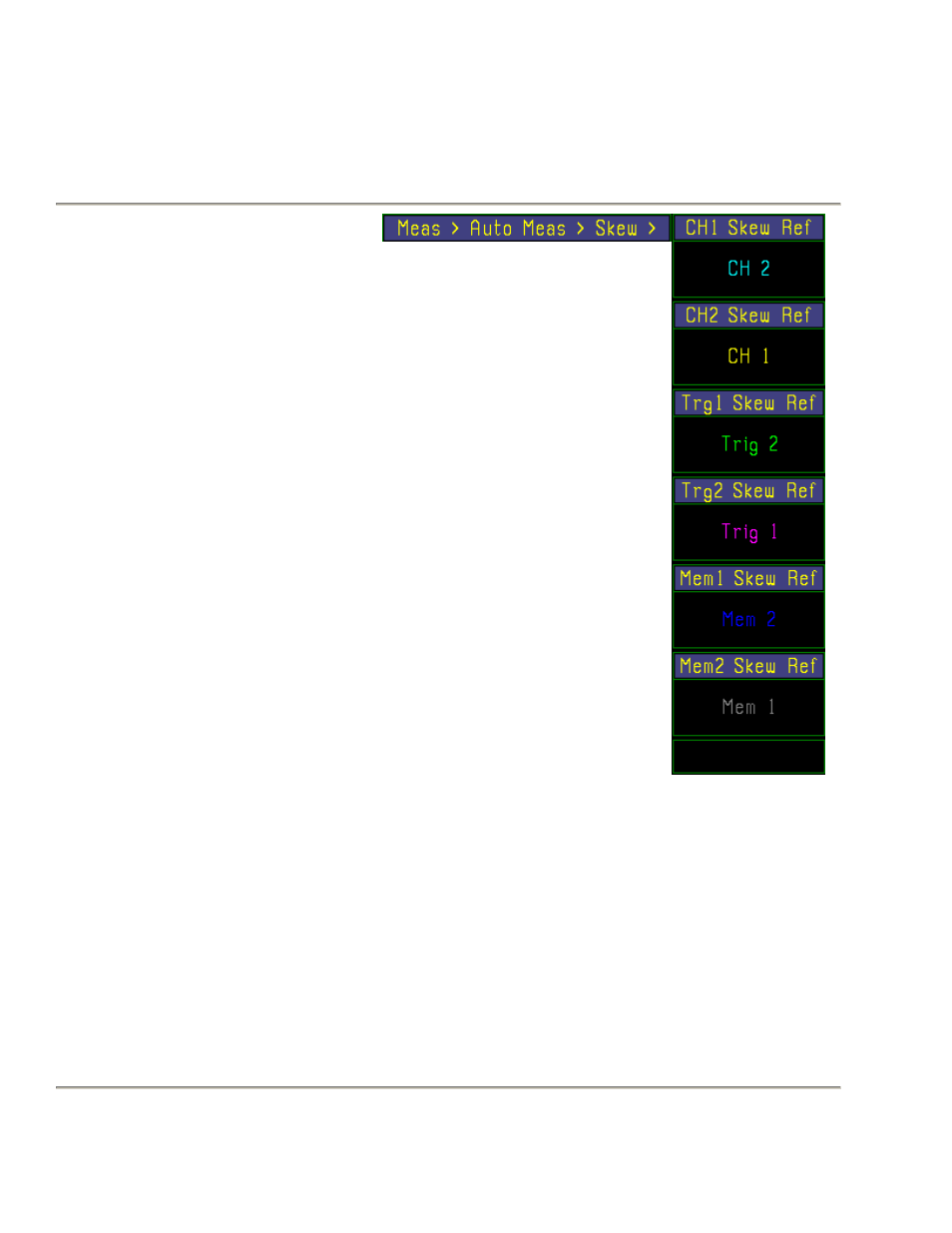

Fig. 4-32a. Meas >Skew
Mem1 Skew Ref Pulse See procedure above. > men
(Selection Menu) CH1, CH2
Trig1, Trig2
Mem1, Mem2 .
Mem2 Skew Ref
Pulse See procedure above.
(Selection Menu) CH1, CH2
Trig1, Trig2
Mem1, Mem2
DISPlay:SKEW[1/2/3/4/6/7]:REFerence {CH1, CH2, TRIG1,
TRIG2, MEM1, MEM2}
Time skew is the difference between the reference channel‘s edge delay and the measured channel‘s edge delay.
