86
Part 1 Installation

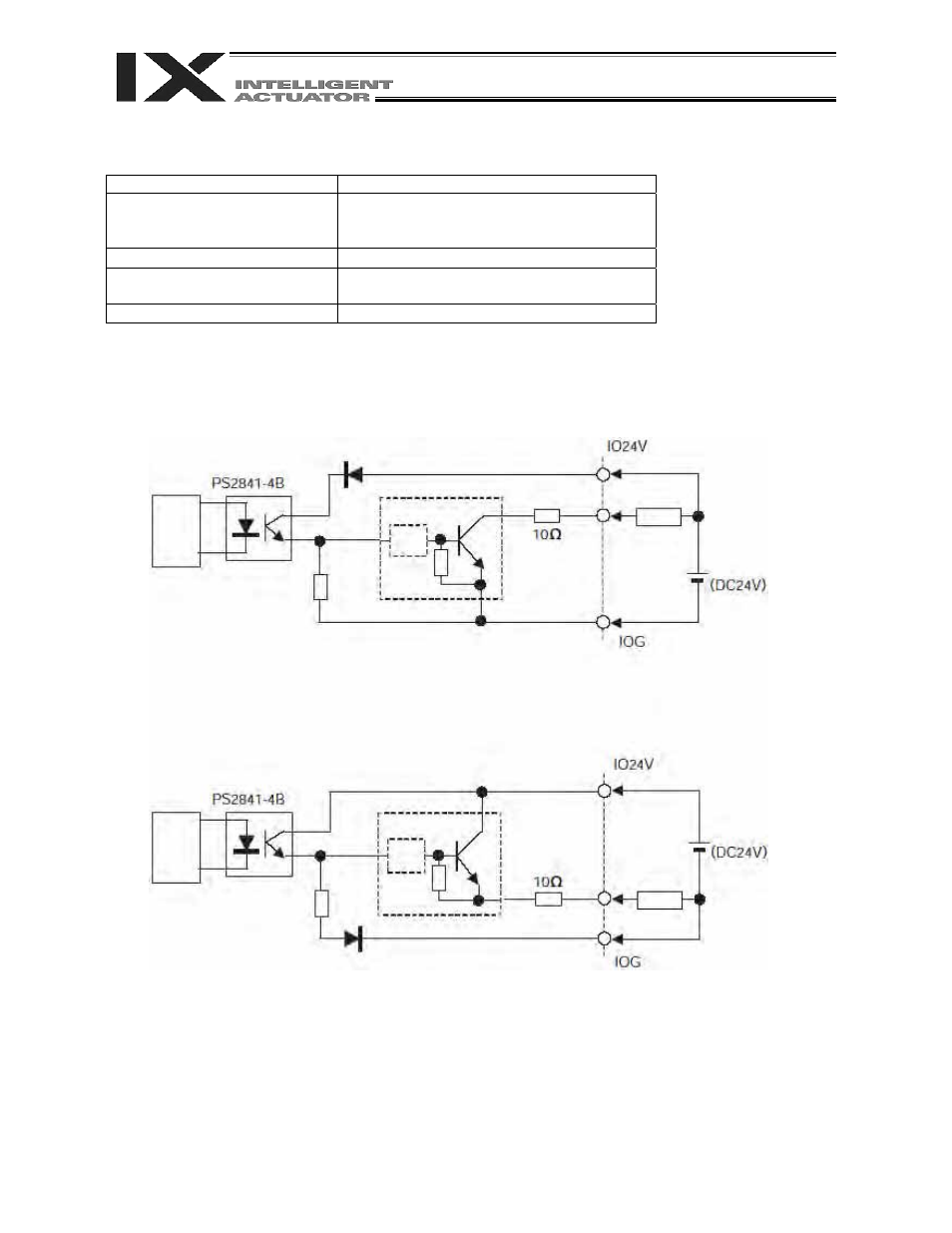

3.6.2 Output
Output specifications
Specification
Output element
Transistor array
NPN specification: TD62084AF by Toshiba
PNP specification: TD62784AF by Toshiba
External power-supply voltage 24 VDC r 10%
Maximum load current Max. 50 mA/1 point
(Max. 400 mA/24 points): *1
Leak current Max. 0.1 mA/1 point
*1: The total output current for every 24 points is 400 mA.
x NPN specification
x PNP specification
Internal
circuit External power
supply
Internal
circuit
External power
supply
Load
Load
Output
terminal
Output
terminal
Transistor
array
Transistor
array
