82
Part 1 Installation
3.3 External Interface Specifications
3.3.1 External DIO Interface Terminal Assignment
Overview or multipoint DIO interface specifications
Item Overview Remarks
Applicable connector Half-pitch flat connector, 100 pins HIF6-100PA-1.27DS (Hirose)
Connector name External DIO connector
External power supply 24 VDC r 10%
The power supply is separated for every 24
DI points/24 DO points.
DI 48 points
DO 48 points

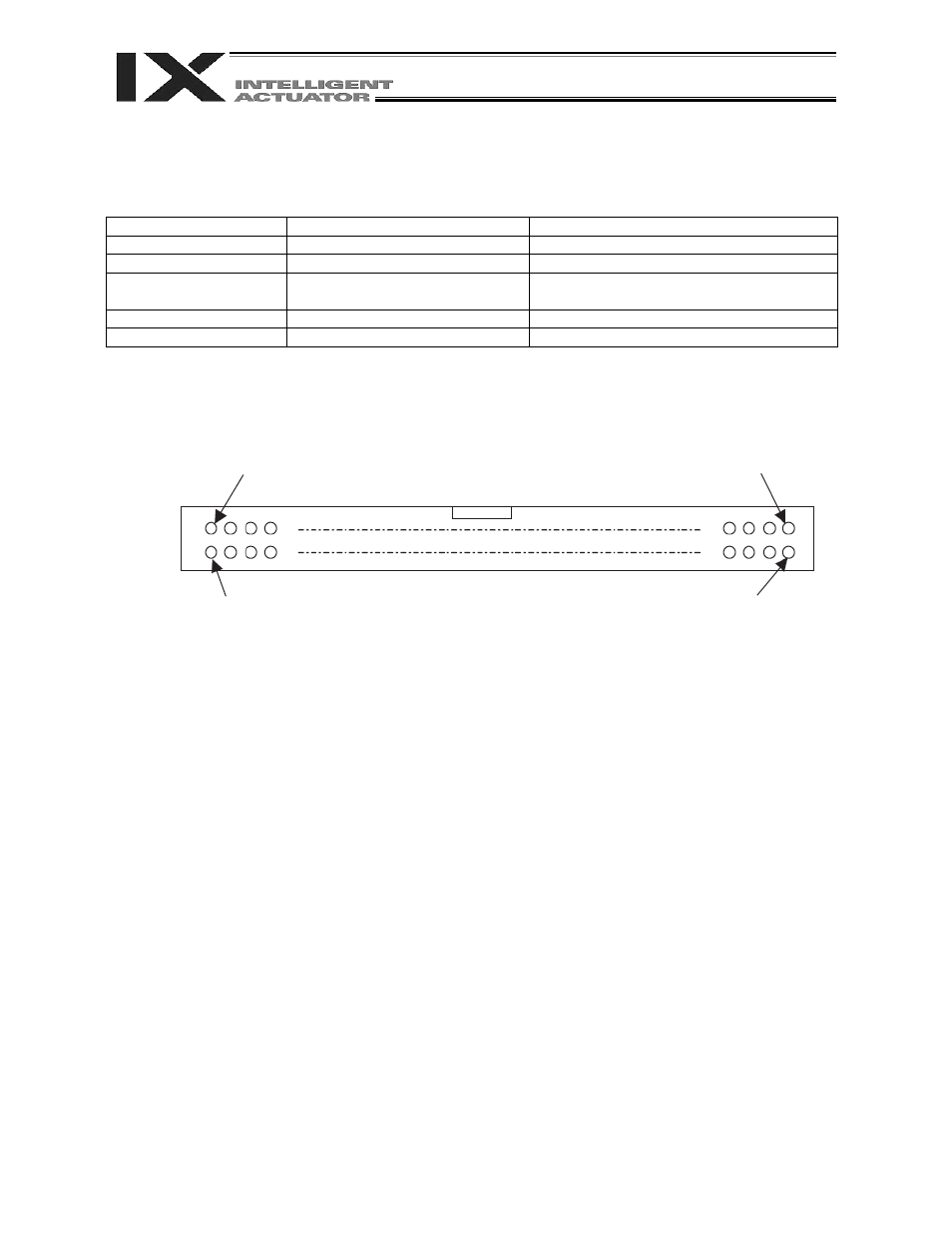

Pin layout (Connector engagement side)
3.3.2 IO24-V Power-supply Input
The power supply for IN000 to 023/OUT300 to 323 is insulated from the power supply for IN024 to
047/OUT324 to 347. Connect an external power supply to each power-supply terminal.
Also note that this board detects errors relating to I/O power supply through the following monitor
functions:
1. Monitor the voltage of the external IO power supply (+24 V)
2. Monitor the output current for every 24 points
Pin 50 Pin 1
Row A
Row B
Pin 100 Pin 51
