TMP92CZ26A
92CZ26A-658

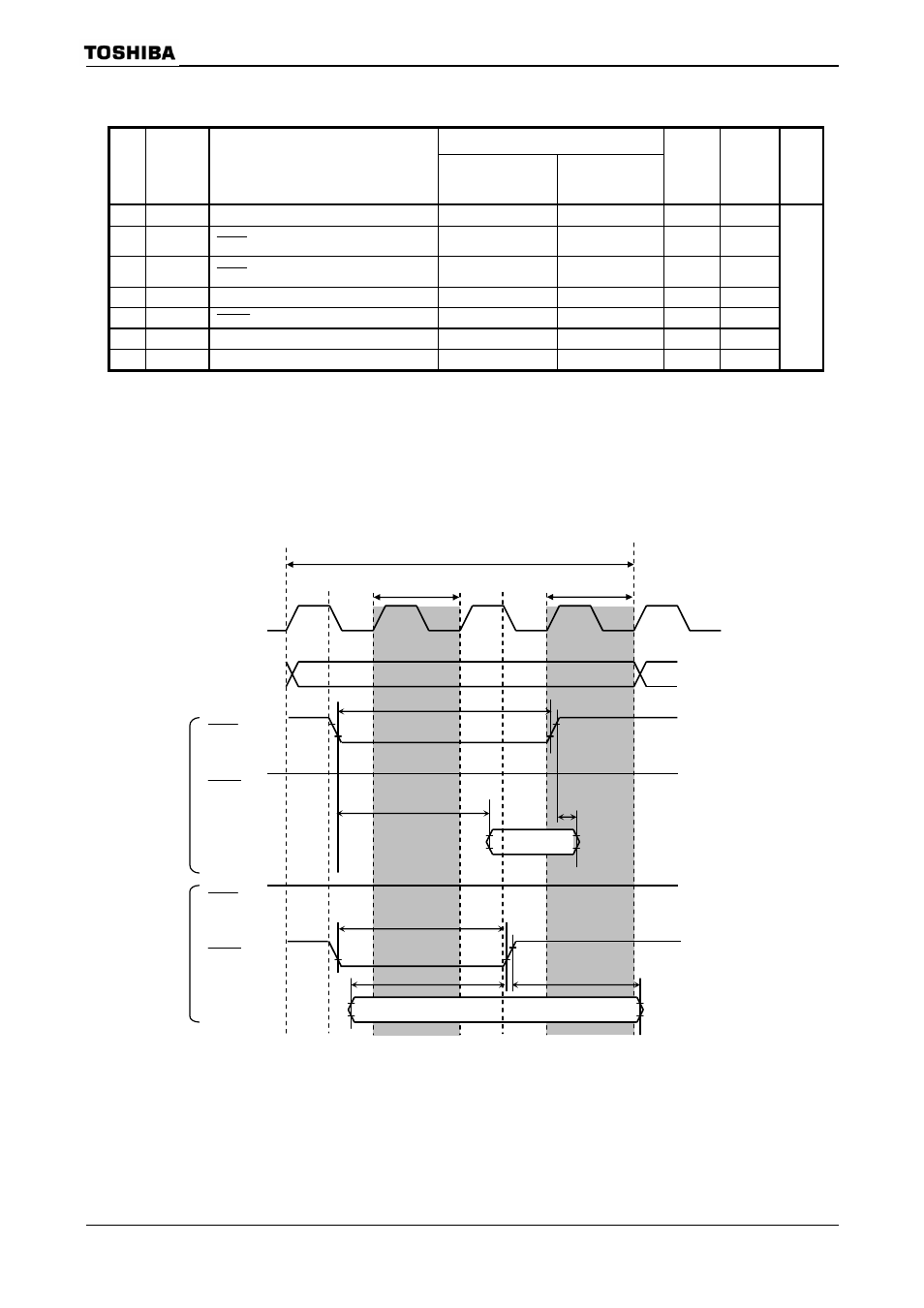

4.3.4 NAND Flash Controller AC Characteristics
Variable
No. Symbol Parameter
Min Max
80 MHz
(n=3)
(m=3)
60 MHz
(n=3)
(m=3)
Unit
1 t
NC Access cycle (2 + n + m ) T 100 132
2 t RP NDRE low level width (1.5 + n) T − 12 45 63
3 t
REA NDRE data access time (1.5
+ n) T − 15
41 60
4 t OH Read data hold time 0 0 0
5 t
WP NDWE low level width (1.0
+ n) T − 20
30 47
6 t DS Write data setup time (1.0 + n) T − 20 30 47
7 t
DH Write data hold time (0.5 + m) T
− 2
42 56
ns
AC measuring condition
Note1: The “n” in “Variable” means wait-number which is set to NDFMCR0, and “m” means number which is
set to NDFMCR0.
Example: If NDFMCR0 is set to “01”, n=1, t
RP
= (1.5 + n) T − 12 = 2.5T − 12
Note2: In above variable, the setting that result is minus can not use.
Data input
SDCLK
A0~A23
NDRE
NDWE
D0~D7
D0~D15
t
RP
t REA
t OH
Read
cycle
Data output
NDRE
NDWE
D0~D7
D0~D15
t WP
t
DH
Write
cycle
t
DS
SPLW1:0="01" SPHW1:0="01"
t
CYC
