Below is control flow in UDC watch from application.

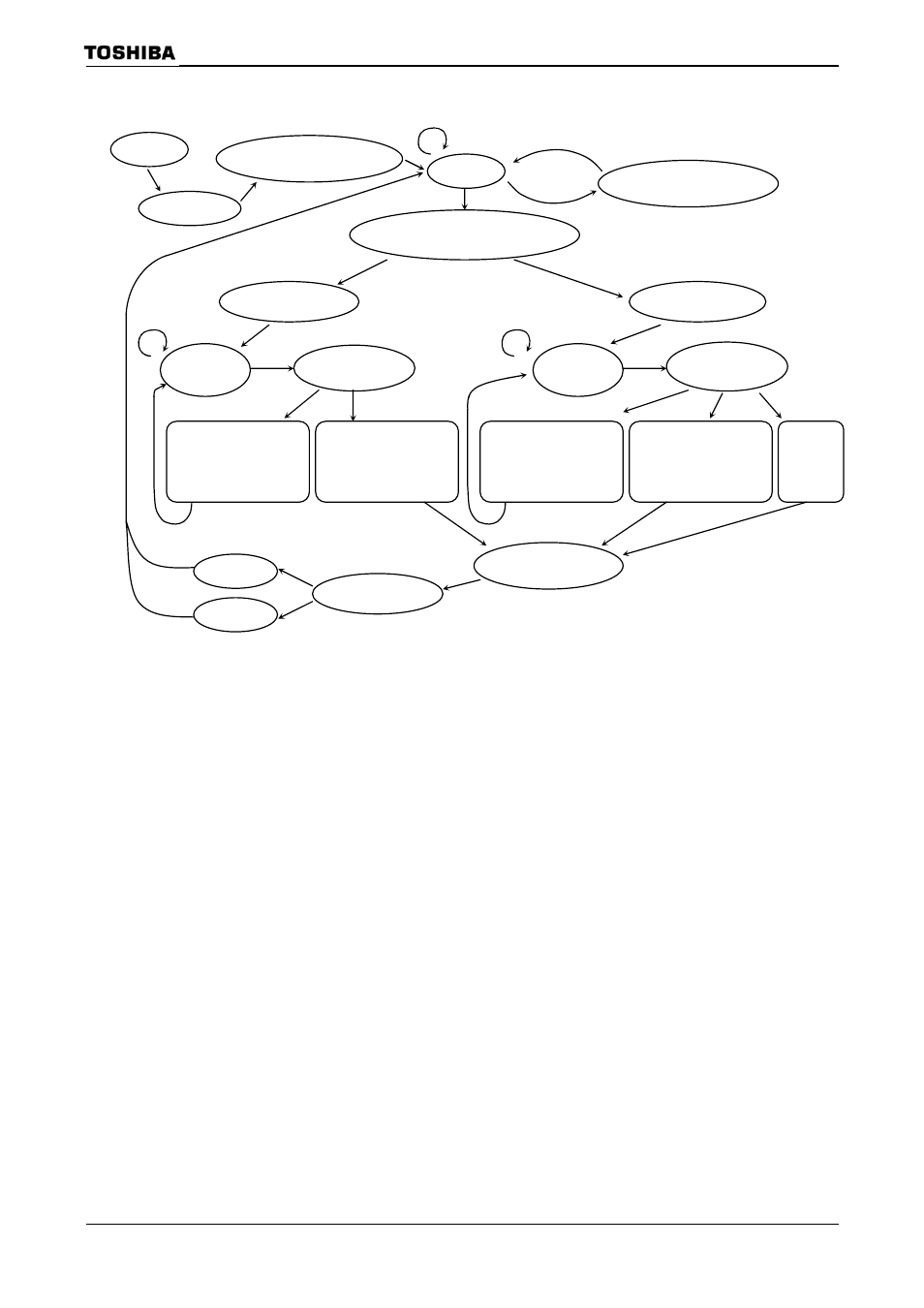

Figure 3.16.6 Control Flow in UDC Watch from Application
Note 1: There is not special case in this flow such as overlap receive SETUP packet.
Please refer to chaptor 4.5.2.3.
Note 2: This flow shows various request. However, transaction can be divided every each interrupt.
Start up
Enumeration
Setting each EP mode
in Set_Config (Interface)
IDLE
Judge request RD
Access to SetupReceived register
Get_Vendor_Request
transaction
Set_Vendor_Request
transaction
Check
DATASET
register
Transmit
judgement
Total_Length
Total
≥ payload
WR number of payload
to EP0_FIFO register
Total = Total
− payload
Total < payload
WR number of rest data
to EP0_FIFO
Total = 0
EP0 bit = 1
EP0 bit
= 0
Receive
except
INT_STATUS
Receive
INT_STAS
Status finish
transacrion in UDC
Check
DATASET
register
Receive
judgement
Total_Length
Total
> payload
RD number of payload
from EP0_FIFO register
Total = Total
− payload
Total
≤ payload
RD number of rest data
from EP0_FIFO
Total = 0
Total
= 0
Not
transaction
Total
= 0
EP0 bit = 0
EP0 bit
= 1
Control RD transfer Control WR transfer
Standard request
Printerclass request
WR “0” only EP0 bit0 of
EOP register
Abnormal
finish
Normal
finish
