TMP92CZ26A
92CZ26A-233
The Self Refresh state can be exited by the Self Refresh Exit command. The Self Refresh
Exit command is executed when SDCMM is set to “110”. It is also executed
automatically in synchronization with HALT mode release. In either of these two cases,
Auto Refresh is performed immediately after the Self Refresh state is exited. Then, Auto
Refresh is executed at specified intervals. Exiting the Self Refresh state clears
SDCMM to “000”.
Setting SDRCR to “0” disables automatic execution of the Self Refresh Exit
command in synchronization with HALT release. The auto exit function should also be
disabled in cases where the SDRAM operation requirements cannot be met as the operation
clock frequency is reduced by clock gear down, as shown in Figure3.10.8.

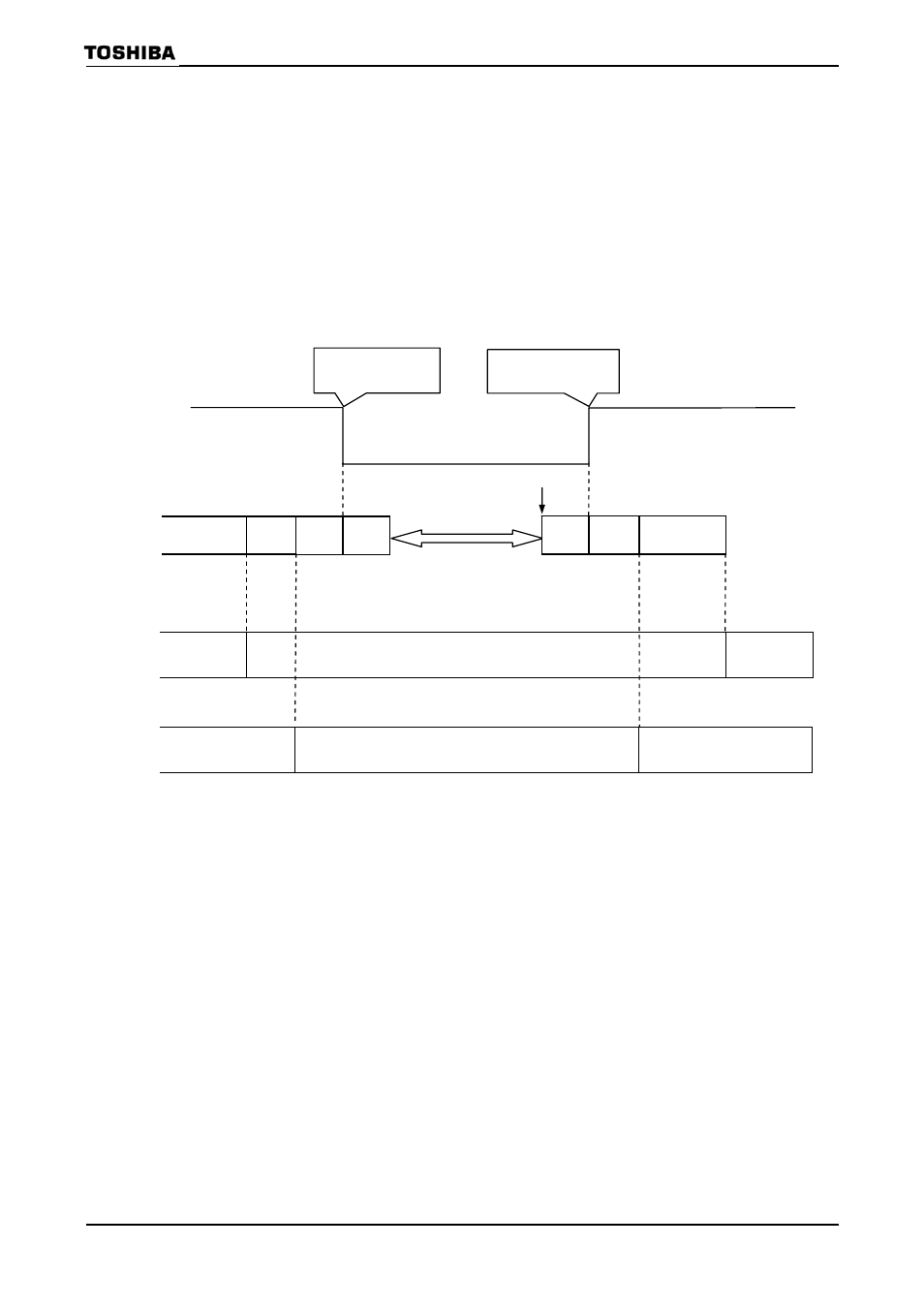

Figure3.10.8 Execution Flow for Executing HALT Instruction after Clock Gear Down
HALT mode
Gear down
SR
ENTRY
CLK
change
HALT
Interrupt
Auto Exit
disable
Self Refresh
Gear up
f
SYS
CPU
SDRAM controller
internal state
Auto-EXIT
disable
Auto-EXIT
enable
SR
EXIT
CLK
change
Auto Exit
enable
SDRAM state
Auto Refresh
Auto Exit
enable
Auto Refresh
60MHz
625 KHz (10MHz/16)
