Notes:
1. The same DLCI number must be specified on both ports.
2. The BDA address must be defined on the connection network definition.
3. The BNI addressees on both ports can be the same or different.
4. If the APPN node initiates the connection to the device, the APPN port
that gets chosen for the connection is dependent upon which port
responds first to the test frame.
Example 3
Notes:
1. This configuration requires two connection network definitions since
there are two SATFs.
2. The DLCI number specified on the ports can be the same or different.
3. The BDA MAC address must be defined on the connection network
definition.
4. The BNI MAC address specified on the ports can be the same or
different.
Example 4

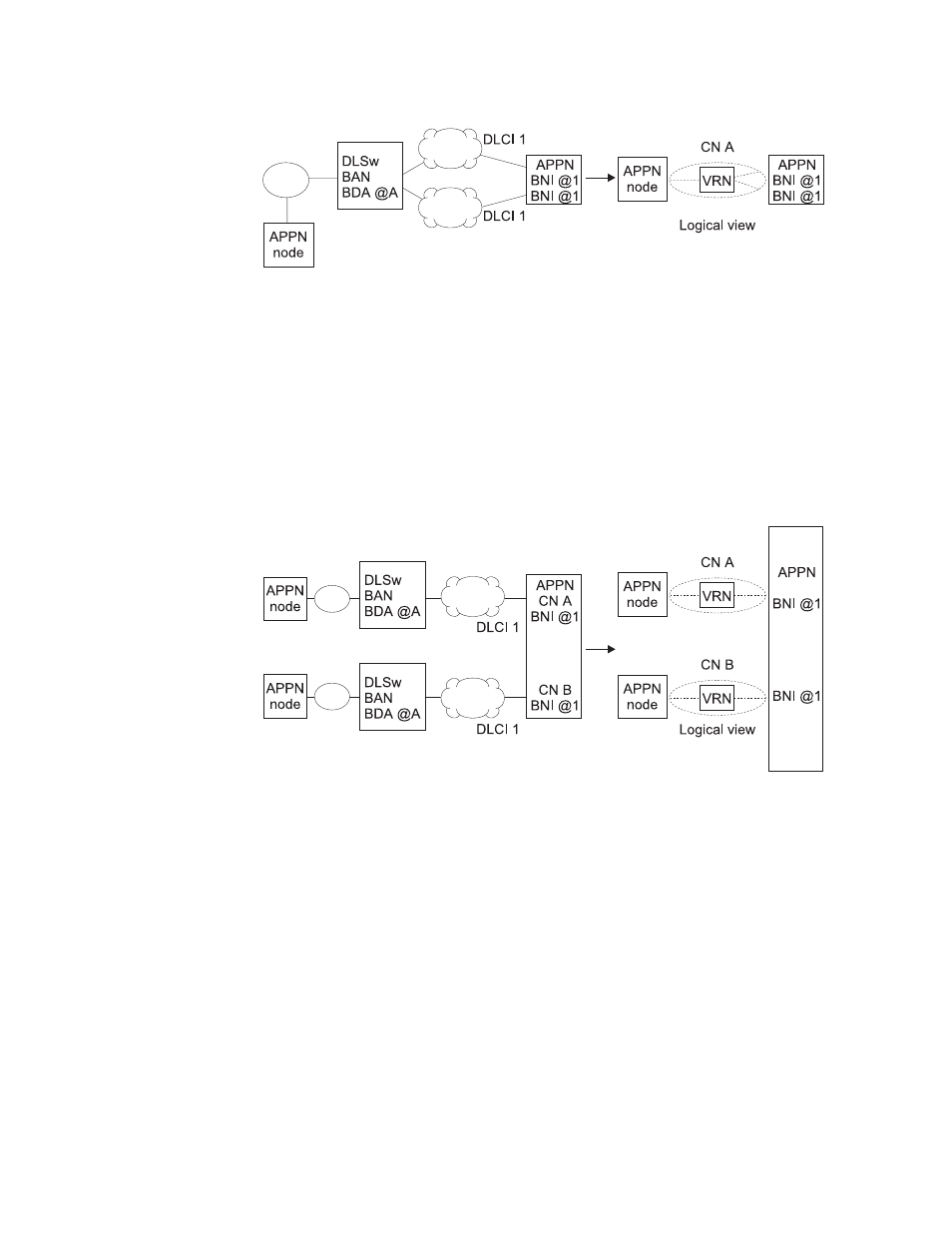

Figure 7. Single Connection Network using BAN with Multiple Frame Relay Ports
Figure 8. Multiple Connection Networks using BAN
APPN
46 MRS V3.2 Protocol Config Ref Vol 2
